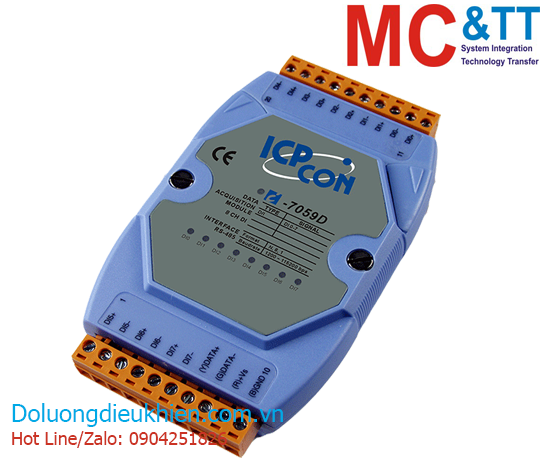

Module RS-485 DCON 8 kênh đầu vào số DI AC/DC ICP DAS I-7059D-G CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

8-ch Isolated (Wet, 10~80 VAC/±15~±80 VDC) DI Module with LED Display

THÔNG TIN SẢN PHẨM

Features

• AC/DC Digital Input
• 8 Differential Input Channels
• All Channels Can be used as 16-bit Counters
• Channel-to-Channel Isolation
• ±4 kV ESD Protection
• 3750 VDC Isolation Voltage
• Dual Watchdog
• Wide Operating Temperature Range: -25 to +75°C

Introduction

The I-7058/I-7059 module offers 8 differential channels for AC/DC Digital Input, each of which features channel-to-channel Photocoupleisolation. All DI channels are also able to be used as 16-bit counters. The I-7058D/I-7059D module has 8 LED indicators fthat can be used to monitor the status of the DI channels. ESD protection of ±4 kV and 3750 VDC intra-module isolation are standard. M-7058D/M-7059D module has the same hardware specifications as the I-7058/I-7059 module, but provides additional support for the Modbus RTU protocol as well as the DCON protocol.

Specification

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

Display
Type	I/O LED Indicator

Isolation
Intra-module Isolation	3750 VDC

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for each Terminal ±8 kV Air for Random Point

LED Indicators
Status	1 x Power and Communication 8 x Digital Input

Digital Input/Counter
Channels	8
Type	Wet Contact
Sink/Source (NPN/PNP)	Sink/Source
Wet Contact, ON Voltage Level	10 ~ 80 VAC/15 ~ 80 VDC
Wet Contact, OFF Voltage Level	3 VAC/VDC Max.
Max. Counts	65535 (16-bit)
Min. Pulse Width	5 ms
Input Impedance	10 kΩ
Overvoltage Protection	120 VAC/VDC Max.
Channel-to-Channel Isolation	Yes, ±2 kV

COM Ports
Ports	1 x RS-485
Baud Rate	1200 ~ 115200 bps
Data Format	(N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Protocol	DCON

Power
Reverse Polarity Protection	Yes
Input Range	+10 ~ +30 VDC
Consumption	0.3 W

Mechanical
Dimensions (mm)	123 x 72 x 35 (W x L x H)
Installation	DIN-Rail

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 95% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

I-7059D-G CR

8-ch Isolated DI (Wet, 10~80 VAC/15~80 VDC) Module with LED Display using DCON Protocol (Gray Cover) (RoHS)
