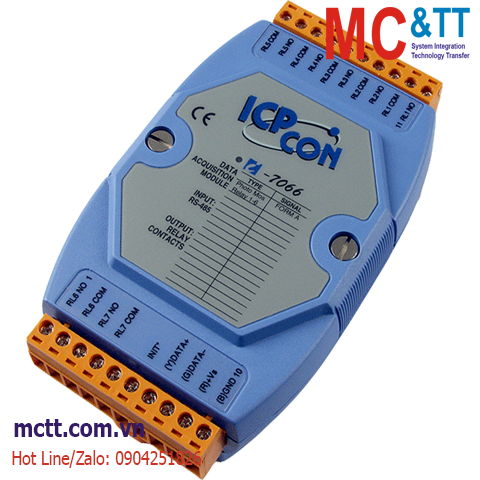

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule RS-485 DCON 7 kênh đầu ra Photo-Mos Relay ICP DAS I-7066 CR
Features
• PhotoMOS Relay:0.13 A @ 350 V (AC peck or DC)
• 7 PhotoMOS Relay Outputs
• 4 kV ESD Protection
• No Arcing, No Bounce, and No Switching Noise
• Photocouple Isolation
• Built-in Dual Watchdog
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Wide Operating Temperature Range: -25 ~ +75°C
Introduction
Both the I-7066 and the M-7066P feature seven Form A PhotoMOS relay output channels. In comparison to electromechanical relays, the PhotoMOS relays provide a faster response time, greater electrical endurance, higher vibration and shock resistance. There are also no arcing, no bounce, and no switching noise for the PhotoMOS relay. There are options for configuring power-on and safe digital output values, and both the I-7066D and the M-7066PD each include seven LED indicators that are used to display channel status as well as providing 4 kV ESD protection.
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 5000 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for 8 Relay and Power Line ±2 kV for RS-485 Port Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Line |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Relay Output | |
|---|---|
| Channels | 7 (Form A) |
| Type | PhotoMOS Relay |
| Contact Rating | Form A: 350 V (AC peck or DC) @ 0.13 A 0.24 A @ 220 VDC 0.25 A @ 250 VAC |
| Leakage Current | 1 uA |
| Operate Time | 2 ms (Max.) |
| Release Time | 1 ms (Max.) |
| Electrical Endurance | Long Life, And No Arcing, No Bounce, And No Switching Noise |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
| Protocol | DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.4 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 123 x 72 x 35 (W x L x H) |
| Installation | DIN-Rail |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering information
| I-7066 CR | 7-ch PhotoMos Relay (0.13 A @ 350 V) Module using DCON Protocol (Blue Cover) (RoHS) |
