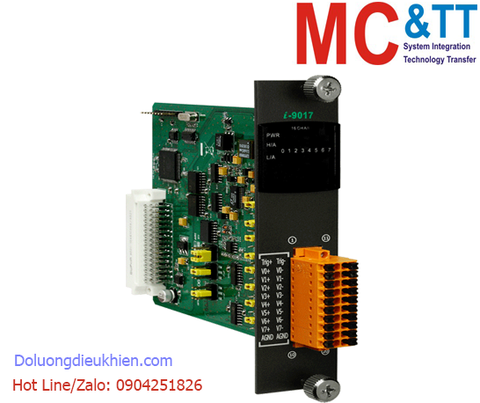

Module 8/16 kênh đầu vào tương tự AI ICP DAS I-9017 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

90 KS/s, 16/8-ch Voltage/Current Input Module (RoHS)

THÔNG TIN SẢN PHẨM

Tính năng

• 16 Single-ended/8 Differential Input Channels
• Input Voltage Range : ±1.25 V, ±2.5 V, ±5 V, ±10 V
• Input Current Range : 0 mA ~±20 mA
• Input Impedance 20 K, 200 K, 20 M
• 14-bit 100 KHz AD Converter
• A/D Trigger Mode: Polling, Interrupt
• 4 kV ESD Protection
• Wide Operating Temperature Range: -25 to +75°C

Giới thiệu

The I-9017 is a high performance Analog Input module with 14 bits of resolution and a sampling rate of up to about 90K S/s. The I-9017 provides up to 16 single-ended or 8 differential input channels, which is selectable via a jumper setting.The I-9017 has qualification for 4 kV ESD protection as well as 2500 Vrms intra-module isolation.

Ứng dụng

• High speed data acquisition system
• Process monitor and control
• Vibration analysis
• Digital pattern generator from digital I/O port

Thông số kỹ thuật

Isolation
Intra-module Isolation	2500 VDC

EMS Protection
ESD (IEC 61000-4-2)	±4 kV Contact for each Terminal ±8 kV Air for Random Point

LED Indicators
Status	1 x Power and Communication

Analog Input
Channels	16-ch Single-ended/8-ch Differential
Type	Voltage Current
Range	Voltage: ±1.25 V, ±2.5 V, 5 V, ±10 V Current: -20 mA ~ +20 mA
Resolution	14-bit
Accuracy	±0.1% of FSR
Sampling Rate	Single Channel Polling Mode: about 90 kS/s Single Channel Interrupt Mode: 50 kS/s 15-channel Scan Mode : 16 kS/s
Bandwidth	100 KHz
Input Impedance	20 K, 200 K, 20 M (Jumper Selectable)
Zero Drift	± 0.1 uV/°C
Span Drift	± 10 ppm/°C

Power
Consumption	2 W Max.

Mechanical
Dimensions (mm)	31 x 134 x 144 (W x L x H)

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents
