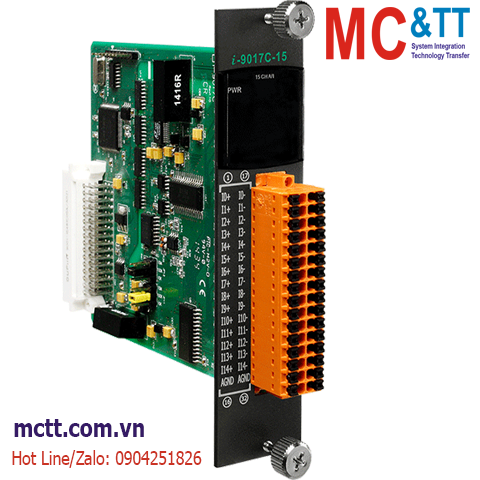

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 15 kênh AI ICP DAS I-9017C-15 CR
Feature
• 15 Differential Input Channels
• Input Range: ±20mA
• 14-bit 100 KHz AD Converter
• A/D Trigger Mode: Polling, Interrupt
• 4 kV ESD Protection
• Wide Operating Temperature Range: -25 to +75°C
Introduction
The I-9017-15/I-9017C-15 is a high performance Analog Input module with 14 bits of resolution and a sampling rate of up to about 90K S/s. The I-9017-15 provides up to 30 single-ended or 15 differential input channels, which is selectable via a jumper setting. The I-9017C-15 provides up to 15 differential input channels for current measurement. Both the two modules have qualification for 4 kV ESD protection as well as 2500 Vrms intra-module isolation.
Application
Application
• High speed data acquisition system
• Process monitor and control
• Vibration analysis
• Digital pattern generator from digital I/O port
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Analog Input | |
|---|---|
| Channels | 15-ch Differential |
| Type | Current |
| Range | -20 mA ~ +20 mA |
| Sampling Rate | Single Channel Polling Mode: about 90K S/s Single Channel Interrupt Mode: 50K S/s 15-channel Scan Mode : 16 K S/s |
| Bandwidth | 100 KHz |
| Input Impedance | 125 Ω |
| Zero Drift | ± 0.1 uV/°C |
| Span Drift | ± 10 ppm/°C |
| Power | |
|---|---|
| Consumption | 2 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 134 x 144 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-9017C-15 CR | 90 KS/s, 15-ch Current Input Module (RoHS) |
