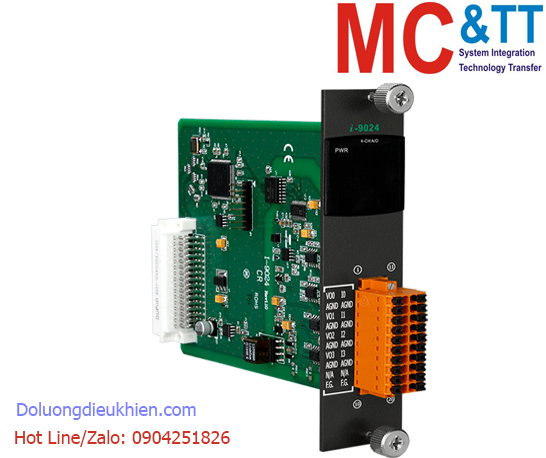

Module 4 kênh đầu ra tương tự AO ICP DAS I-9024 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

4-ch Analog Output Module (RoHS)

THÔNG TIN SẢN PHẨM

Tính năng

• 4-channel Voltage or Current Output
• Individual Channel Configuration
• Short Circuit Protection
• Open Wire Detection for Current Output
• RF Immunity
• 4 kV ESD Protection
• 3000 VDC Intra-module Isolation
• Wide Operating Temperature Range: -25 to +75 °C

Giới thiệu

The I-9024 is a 14-bit analog output module, which off ers 4 single-ended analog output channels. Every channel can be programmed to an individual output range of ±10 V or 0 ~ +20 mA. The I-9024 provides RF immunity level matching that defined by IEC 61000-4-3 standard, together with 4 kV ESD protection as well as 3000 VDC intra-module isolation.

Thông số kỹ thuật

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
ESD (IEC 61000-4-2)	±4 kV Contact for each Terminal ±8 kV Air for Random Point

LED Indicators
Status	1 x Power and Communication

Analog Output
Channels	4
Type	Voltage Current
Range	Voltage: ±10 V Current: 0 ~ +20 mA
Resolution	14-bit
Accuracy	Voltage: ±0.1% of FSR Current: ±0.2% of FSR
Zero Drift	Voltage: ±30 μV/°C Current: ±0.2 μV/°C
Span Drift	±20 ppm/°C
Response Time	25 us per channel
Programmable Output Slope	Voltage: 0.72 V /us Current: 0.107 mA /us
Current Output Wiring	Sink
Readback Accuracy	±1% of FSR
Voltage Output Capability	10 V @ 20 mA
Current Load Resistance	External+24V: 1050 Ω

Power
Consumption	2 W Max.

Mechanical
Dimensions (mm)	31 x 134 x 144 (W x L x H)

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents
