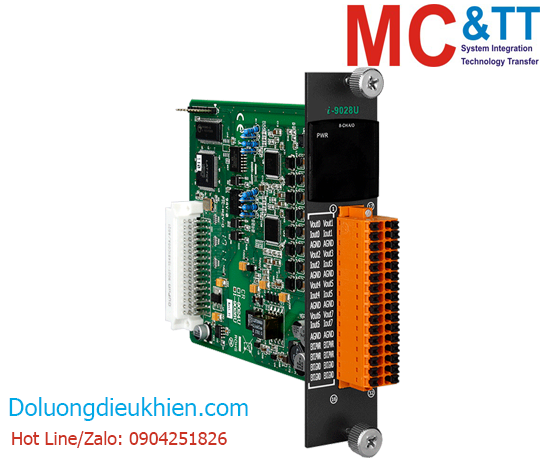

Module 8 kênh AO ICP DAS I-9028U CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

8-ch Isolated Analog Output Module

THÔNG TIN SẢN PHẨM

Features

• 8-channel Voltage or Current Output
• Individual Channel Configuration
• Short Circuit Protection
• Power-on Value
• Safe Value
• 4 kV ESD Protection
• 3000 VDC Intra-module Isolation
• Wide Operating Temperature Range: -25 to +75°C

Introduction

The I-9028U is source type analog output modules, offering 8 single-ended analog output channels. Each channel can be programmed to an individual output range of 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, +4 ~ +20 mA or 0 ~ +20 mA. Open wire detection is provided for +4 ~ +20 mA output. Options for configuring power-on and safe values are included, together with qualification for 4 kV ESD protection as well as 3000 VDC intramodule isolation.

Specification

Isolation
Intra-module Isolation	2500 VDC

EMS Protection
ESD (IEC 61000-4-2)	±4 kV Contact for each Terminal ±8 kV Air for Random Point

LED Indicators
Status	1 x Power and Communication

Analog Output
Channels	8
Range	0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC, 0 ~ +20 mA, +4 ~ +20 mA
Resolution	16-bit
Accuracy	±0.02% of FSR
Zero Drift	±0.2 μV/°C
Span Drift	±25 ppm/°C
Short Circuit Protection	Yes
Current Output Wiring	Source
Power on Value	Yes
Safe Value	Yes

Power
Reverse Polarity Protection	Yes
Isolation	3000 VDC
Consumption	2 W Max.
Powered from Terminal Block	Yes, 15 ~ 30 VDC

Mechanical
Dimensions (mm)	31 x 134 x 144 (W x L x H)

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

I-9028U CR

8-ch Isolated Analog Output Module (RoHS)
