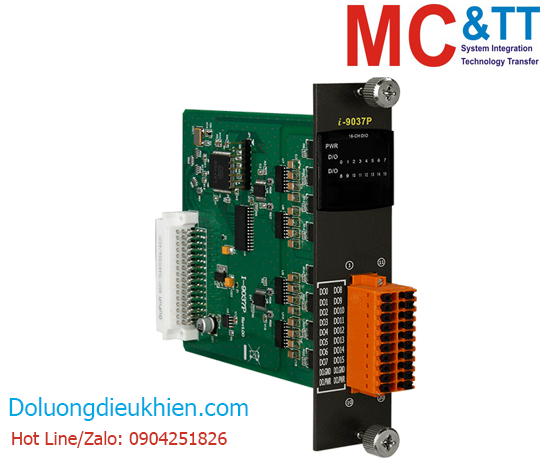

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 16 kênh DO ICP DAS I-9037P CR
Features
• 16-channel Source-type Digital Output
• Channel Status LED Indicators
• Photo Couple Isolation
• Short Circuit Protection
• Power-on Value and Safe Value Options
• 4 kV ESD Protection
• 3750 VDC Intra-Module Isolation
Introduction
The I-9037P provides 16 channels of digital output with photo couple isolation. Source-type output with short circuit protection and up to 700 mA load current are supported for each channel. There are options for confi guring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also included to enrich the noise protection ability for industrial environment.
Specification
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 16 x DO |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | + 5 to +30 VDC |
| Max. Load Current | 700 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Short-Circuit Protection | Yes |
| Power | |
|---|---|
| Consumption | 1 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 mm x 134 mm x 144 mm |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering information
| I-9037P CR | 16-ch Isolated DO (Source, PNP) Module (RoHS) |
