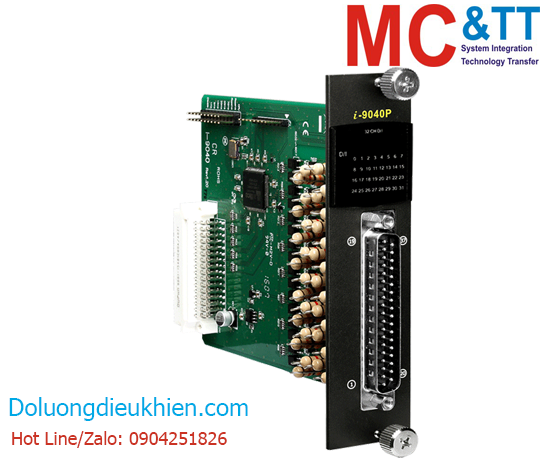

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 32 kênh đầu vào số DI ICP DAS I-9040P CR
Tính năng
• 32-channel Digital Input
• Sink-type or Source-type Digital Input
• Compatible with 24 V Levels
• Channel Status LED Indicators
• Optional Daughter Boards for Easy Field Wiring
• 3750 Vrms Intra-module Isolation
• Wide Operating Temperature Range: -25 ~ +75°C
Giới thiệu
The I-9040P is a 32-channel digital input module, each channel features photo-couple isolation and can be either sink- or source-type input, selectable by the wiring. The ON voltage level of the I-9040P is ranged from +19 V to +30 V, while the OFF voltage level is under +11 V. It is suitable for +24 VDC digital input systems. By pairing with a daughter board such as the DN-37-381-A, the wiring is easier than ever. 32 LED indicators are provided for monitoring DI channel status, together with 4 kV ESD protection and 3750 VDC intra-module isolation.
Thông số kỹ thuật
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 32 x DI |
| Digital Input | |
|---|---|
| Channels | 32 |
| Type | Dry + Wet Contact 5 V/TTL |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +19 VDC ~ +30 VDC TTL: 0 V ~ +0.8 V |
| OFF Voltage Level | Dry: Open Wet: +11 VDC Max. TTL: +2 V ~ +5 V |
| Response Speed | OFF to ON: 1 ms/5 ms/10 ms/20 ms/40 ms/70 ms (by Jumper select) or CPU parameter setting, Default Setting is Disable ON to OFF: 1 ms/5 ms/10 ms/20 ms/40 ms/70 ms (by Jumper select) or CPU parameter setting, Default Setting is Disable |
| Isolation | ON Voltage Level: +4 V ~ +30 V OFF Voltage Level: 0 V ~ +1 V |
| Input Impedance | 3 KΩ, 0.5W |
| Power | |
|---|---|
| Consumption | 1 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 134 x 134 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Thông tin mua hàng
| I-9040P CR | 32-ch Isolated DI (Dry, Wet) Module with Low Pass Filter (RoHS) |
