Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 8 kênh DI ICP DAS I-9048 CR
Feature
• Isolated or Non-isolated TTL Input Jumper Selectable
• Rising/Falling-edge Interrupts Programmable
• Supports Slot0, Slot1, Slot2, or Slot3 only
• Channel Status LED Indicators
• 4 kV ESD Protection
• 1500 VDC Intra-module Isolation
• Wide Operating Temperature Range: -25 ~ +75°C
Introduction

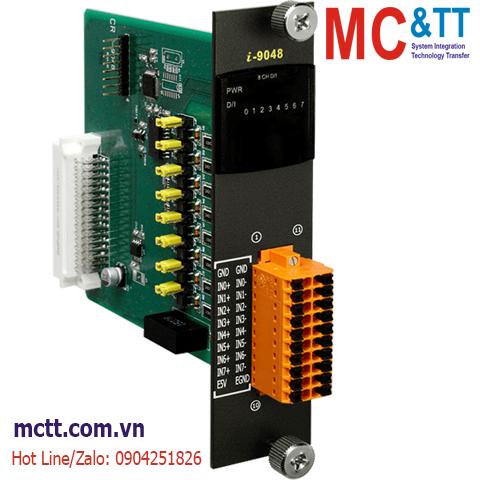

The I-9048 is an 8-channel digital input module with hardware interrupt capability for real-time system application. Each channel can be programmed as an interrupt input channel to invoke an interrupt on falling edges, rising edges or both falling and rising edges.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 1500 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 8 x DI |
| Digital Input | |
|---|---|
| Channels | 8 |
| Type | Dry Contact Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| Input Impedance | 2.4 KΩ, 0.5 W |
| Power | |
|---|---|
| Consumption | 1.75 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 134 x 144 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-9048 CR | 8-ch DI (Dry, Wet) Module with Interrupt (RoHS) |
