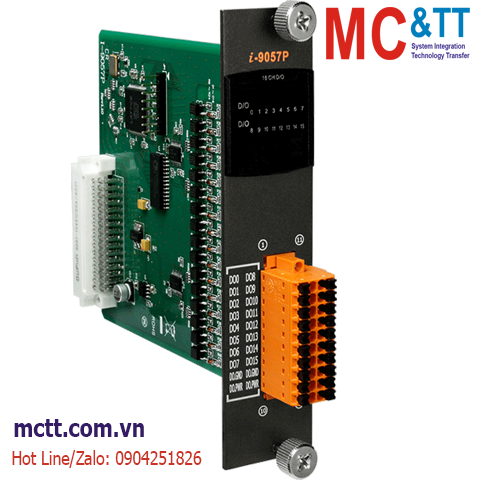

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 16 kênh DO ICP DAS I-9057P CR
Feature
• 16-channel Open Collector Output
• Sink-type Digital Output
• Channel Status LED Indicators
• Up to 60 VDC Overvoltage Protection
• Overload Protection
• Short-circuit Protection
• 4 kV ESD Protection
• Wide Operating Temperature Range: -25 to +75°C
Introduction
The I-9057P module offers 16 digital output channels, each of which features Photocouple isolation and supports sink-type output using an open collector. In addition, 16 LED indicators are included to monitor the status of digital output channels. The I-9057P integrates overcurrent, over-voltage and short-circuits protections for industrial use. 4 kV ESD protection and 3750 Vrms intra-module isolation are also provided as standard.
Application
Energy Storage System
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 16 x DI |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +10 VDC ~ +50 VDC |
| Load Current | 100 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.1 A |
| Short-circuit Protection | Yes |
| Power | |
|---|---|
| Consumption | 1 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 134 x 144 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-9057P CR | 16-ch Isolated DO (Sink, NPN) Module (RoHS) |
