Module 8 kênh RTD ICP DAS I-97015 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

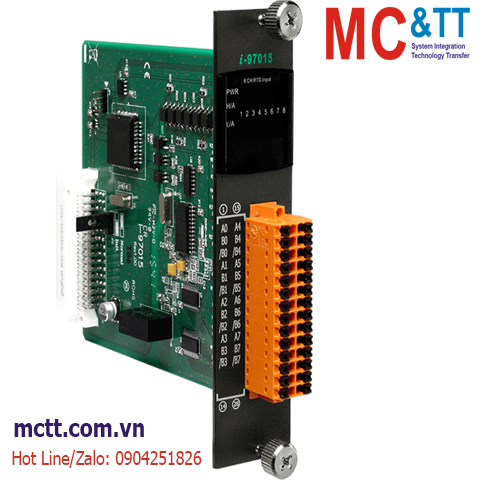

8-ch RTD Input Module

THÔNG TIN SẢN PHẨM

Feature

• 8-channel RTD Input
• 3-wire RTD Lead Resistance Elimination
• High Resolution: 16-bit
• Individual Channel Configuration
• Open Wire Detection
• Overvoltage Protection
• ±4 kV ESD Protection
• 3000 VDC Intra-module Isolation
• Wide Operating Temperature Range: -25 to +75°C

Introduction

The I-97015 is a 8-channel RTD input module that is used for measuring temperature using RTD. Each channel can be connected to different kinds of RTD sensor. and features automatic compensation for three-wire RTD so that it can measure accurately regardless of the length of the wires. Also, the I-97015 are fully RoHS-compliant and features 4 kV ESD protection as well as 3000 VDC intra-module isolation.

Application

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal ±8 kV Air for Random Point
RS Immunity (IEC 61000-4-3)	3 V/m, 80 MHz ~ 1 GHz

LED Indicators
Status	1 x Power and Communication 16 x High/Low Alarm Signals

Analog Input
Channels	8
Sensor Type	Pt100, Pt1000, Ni100, Ni120, Cu50, Cu100, Cu1000
Resistance Measurement	3.2 kΩ
Resolution	16-bit
Accuracy	±0.05 % of FSR
Sampling Rate	12 Hz (Total)
Bandwidth	15.7 Hz
Input Impedance	>1 MΩ
Common Mode Rejection	150 dB
Normal Mode Rejection	100 dB
Overvoltage Protection	±120 VDC
Individual Channel Configuration	Yes
Open Wire Detection	Yes
3-wire RTD Lead Resistance Elimination	Yes
Zero Drift	±0.5 μV/°C
Span Drift	±20 ppm/°C

COM Ports
Ports	1 x RS-485
Baud Rate	1200 to 115200 bps
Data Format	N, 8, 1
Protocol	DCON

Power
Consumption	0.6 W Max.

Mechanical
Dimensions (mm)	31 x 134 x 144 (W x L x H)

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-97015 CR

8-ch RTD Input Module (RoHS)
