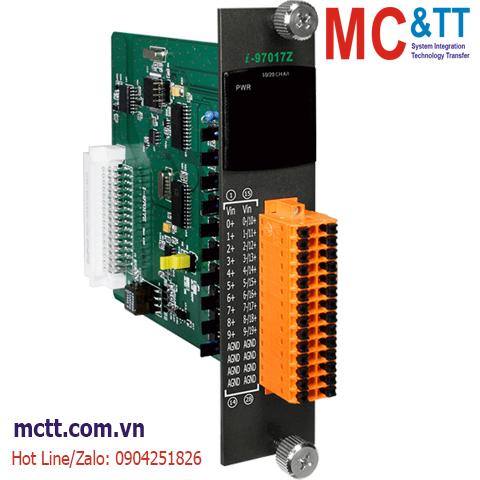

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 10/20 kênh AI ICP DAS I-97017Z CR
Feature
• 10-channel Differential or 20-channel Single-ended Inputs
• Jumper Selectable Voltage or Current Input
• 240 Vrms Overvoltage Protection
• High Resolution: 16-bits
• Supports Fast Mode and Normal Mode
• 4 kV ESD Protection
• 3000 VDC Intra-module Isolation
• Individual Channel Configuration
• Dual Watchdog
• RoHS Compliance
• Wide Operating Temperature Range: -25 to +75°C
Introduction
The I-97017Z is an analog input module that includes 10 differential or 20 single-ended analog input channels. It provides a programmable input range on all analog inputs. (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V,+/-10 V, +/-20 mA or 0 ~ +20 mA) Each analog input can be configured for an individual range that provides 240 Vrms high overvoltage protection and 50mA overcurrent protection at 110 VDC/VAC. Voltage and current inputs are jumper selectable. The sampling rate of the I-97017Z is adjustable and is available in either fast or normal mode. The module also features perchannel open wire detection for +4 ~ +20 mA inputs that provides 4 KV ESD protection as well as 3000 VDC intra-module isolation.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| RS Immunity (IEC 61000-4-3) | ±4 kV for Power |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Analog Input | |
|---|---|
| Channels | 10 Differential or 20 Single-ended (See Note 1), Jumper selectable |
| Range | ±150 mV, ±500 mV, ±1 VDC, ±5 VDC, ±10 VDC, ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (jumper selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1% of FSR Fast Mode: ±0.5% of FSR |
| Sampling Rate | Normal Mode: 10 Hz (Total) Fast Mode: 50 Hz (Total) |
| Bandwidth | Normal Mode: 15.7 Hz Fast Mode: 78.7 Hz |
| Input Impedance | Voltage: 2 MΩ(Differential), 1 MΩ (Single-ended) Current: 125 Ω |
| Common Mode Rejection | 86 dB |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | Differential: 240 Vrms Single-ended: 150 Vrms |
| Overcurrent Protection | 50 mA Max. at 110 VDC/VAC Max. |
| Individual Channel Configuration | Yes |
| Zero Drift | ±20 μV/°C |
| Span Drift | ±25 ppm/°C |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 to 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | DCON |
| Power | |
|---|---|
| Consumption | 0.5 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 134 x 144 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Specification Memo
Note 1: Differential mode can be used for either voltage input or current input. Single-Ended mode can only be used for voltage input.
Download
Ordering Information
| I-97017Z CR | 10/20-ch Analog Input Module with High Voltage Protection (RoHS) |
