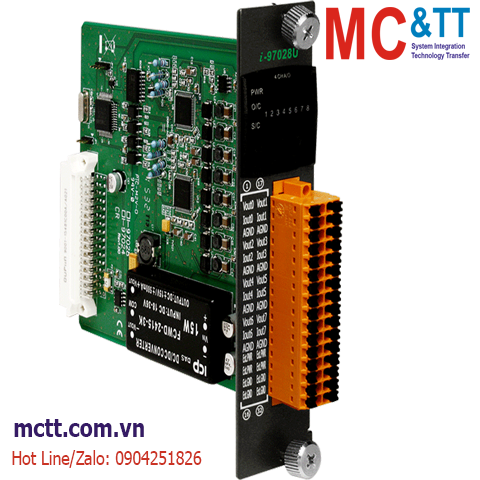

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 8 kênh AO ICP DAS I-97028U CR
Feature
• 8-channel Voltage or Current Output
• Individual Channel Configuration
• 3000 VDC Intra-module Isolation
• Open Wire Detection for Current Output
• RF Immunity
• Short Circuit Protection
• Power-on Value
• Safe Value
• 4 kV ESD Protection
• Wide Operating Temperature Range: -25 to +75°C
Introduction
The I-97028U is source type analog output modules, which offer 8 single-ended analog output channels. Every channel can be programmed to an individual output range of 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, +4 ~ +20 mA or 0 ~ +20 mA. Open wire detection is provided for +4 ~ +20 mA output. Options for configuring power-on and safe values are also included. The I-97028U provide RF immunity level matching that defined by IEC 61000-4-3 standard, together with 4 kV ESD protection as well as 3000 VDC intra-module isolation
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| RS Immunity (IEC 61000-4-3) | 3 V/m, 80 MHz ~ 1 GHz |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 16 x Analog Output Fault |
| Analog Output | |
|---|---|
| Channels | 8 |
| Range | 0 ~ +5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC, 0 ~ +20 mA, +4 ~ +20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.02% of FSR |
| Zero Drift | ±0.2 μV/°C |
| Span Drift | ±25 ppm/°C |
| Short Circuit Protection | Yes |
| DA Output Response Time | 10 ms per channel |
| Programmable Output Slope | Voltage: 0.0625 ~ 512 V/Second Current: 0.125 ~ 1024 mA/Second |
| Current Output Wiring | Source |
| Open Wire Detection | Yes, +4 ~ +20 mA |
| Voltage Output Capability | 1000 Ω |
| Power-on Value | Yes |
| Safe Value | Yes |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 to 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 0.7 W Max. |
| Powered from Terminal Block | Yes, 15 ~ 30 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 31 x 134 x 144 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| I-97028U CR | 8-ch Isolated Analog Output Module (RoHS) |
