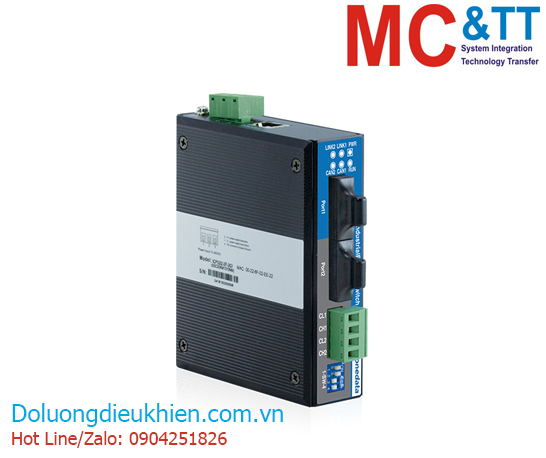

Bộ chuyển đổi 2 cổng CAN BUS sang 2 cổng Quang (2 sợi quang, Single Mode, SC, 20KM) 3Onedata ICP222-2F-S-SC-20KM-2CI

ICP222-2F-2CI is a CAN server that has integrated 2 CAN ports and 2 Ethernet ports internally. It can implement interconnection between CAN-Bus network and Ethernet network easily to further extend the communication range of CAN-Bus network. It supports 2 CAN to 2 100M Ethernet fiber port and adopts DIN-Rail mounting which can meet the requirements of different scenes.

CAN server supports various network protocols, such as TCP, UDP, TELNET, SW-Ring, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each CAN supports 4 TCP or UDP session connections and multiple operating modes like TCP Server, TCP Client, UDP and TCP Auto. Moreover, it supports WEB, TELNET, and other access modes. It can provide users with good experience via friendly design of network management system interface, simple and convenient operation.

DIP switch could implement restoring factory setting and accessing terminal resistor. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, building automation, healthcare automation system, measuring instrument and environment monitoring system, etc.

Features and Benefits

Support 2 100Base-FX Ethernet fiber ports

Support 5kbps~1000kbps line-speed non-blocking communication

Support multiple operating modes like TCP Server, TCP Client, UDP and TCP Auto

SW-Ring could implement network redundancy and prevent network storm

Support cross-gateway and cross-router communication

Support time setting for heartbeat and overtime disconnection, which can disconnect idle TCP automatically

Support CAN port status and parameter monitoring, making communication state clear to be seen

Support automatic reconnection from network interrupts to establish reliable TCP connection

Flexible CAN data framing setting can meet user’s various needs in data partition

TCP support multi-connection, which enables up to 4 users to monitor and manage CAN device simultaneously

Stand-alone or multi-device communication is supported in UDP mode, which enables multiple users to monitor or manage CAN device simultaneously

Support multiple configuration forms like Windows configuration tool, TELNET and WEB
