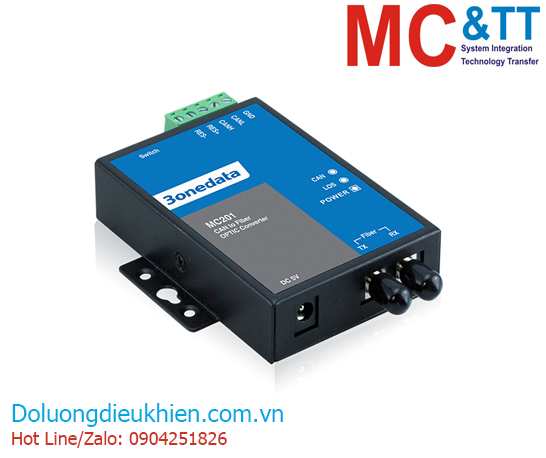

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ chuyển đổi CAN BUS sang Quang (2 sợi quang, Single Mode, SC, 20KM) 3Onedata MC201-F-S-SC-20KM
Features
Support 1 CAN port to 1 fiber port
CAN port supports two options for choosing baud rate, automatic detection and user definition. The range of baud rate is 2.5kbps-1000kbps
Data receiving/storing/forwarding could be achieved between 2 CAN networks with different rates when used in pairs
It can extend CAN bus transmission distance, the transmission distance of fiber port can reach up to 15km
Support -40～75℃ wide operating temperature range
Introduction
MC201-F is a CAN bus signal to optical signal converter. It’s specially designed for solving problems like short transmission distance and electromagnetic interference during CAN bus transmission. It supports 1 CAN port to 1 fiber port transparent transmission and adopts wall mounting which can meet the requirements of different scenes.
DIP switch could implement baud rate setting of CAN port. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, building automation, healthcare automation system, measuring instrument and environment monitoring system, etc.
Specification
| Fiber Port |
Interface form：SC/ST/FC Transmission distance： multimode：2km single mode：15km Optical cable： multimode：50/125μm or 62.5/125μm single mode：8.3/125μm、8.7/125μm、9/125μm or 10/125μm Transmission wavelength： multimode：1310nm single mode：1310nm or 1550nm
|
| CAN Interface |
Standard: CAN2.0A, CAN2.0B CAN signal: CANH, CANL, GND Duplex mode: 2-wire Half Duplex Mode Baud rate: 2.5kbps-1000kbps Load capacity: support concurrent transmitting of 110 nodes Transmission distance: 40m~10km Interface form: adopt 5-pin 5.08mm pitch terminal blocks Terminating resistor: optional external 120Ω terminating resistor Interface protection: 2kVAC isolation protection
|
|
LED Indicator
|
Power supply indicator, fiber port/data indicator, CAN port indicator |
|
Power Requirement
|
5VDC, DC round head
|
| Power
Consumption |
No-load: 1.39W@5VDC Full-load: 1.31W@5VDC
|
| Environmental
Limit |
Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95%(no condensation)
|
| Physical
Characteristic |
Housing: IP40 protection, metal Installation: wall mounting Dimension (W x H x D): 69mm×22mm×100mm Weight: 237g
|
| Industrial
Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV Contact discharge: ±6kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
|
| Certification |
CE, FCC, RoHS
|
| Warranty |
3 years |

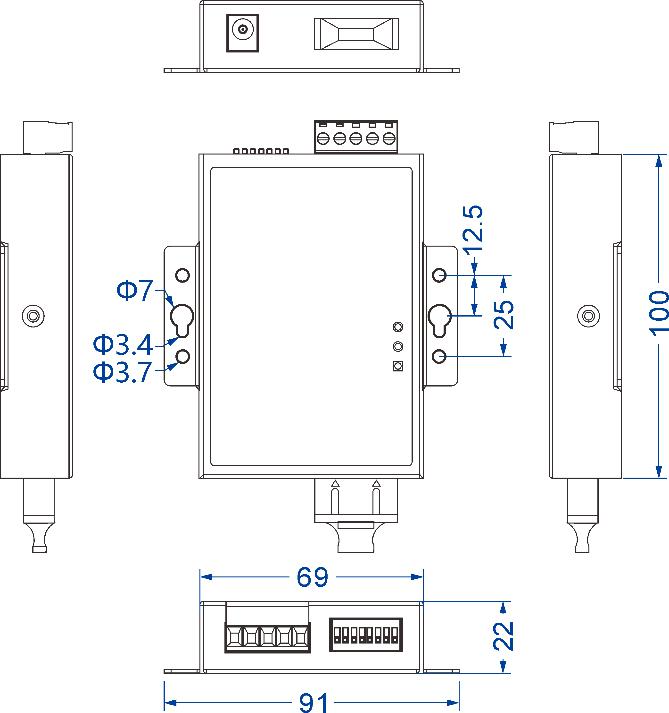

Dimension
Download
Ordering Information
| Available Models | Fiber Port | CAN | Power Supply Range |
| MC201-F | 1 | 1 |
5VDC |
