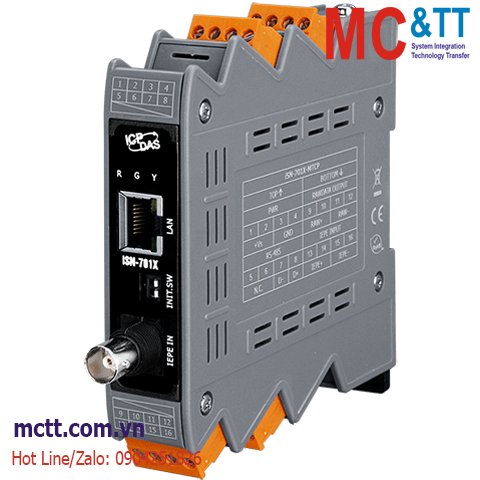

Bộ chuyển đổi tín hiệu cảm biến đo rung sang dòng + RS485/Ethernet Modbus RTU/TCP ICP DAS iSN-701X CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Vibration signal to Current converter

THÔNG TIN SẢN PHẨM

Feature

Built-in 4 mA excitation current
Support multiple sampling rate: 200kHz/100kHz/50kHz/20kHz/10kHz/5kHz
LED indicators for sensor open and normal
Data Format: RMS, Maximum, P-P, Crest Factor, FFT, Velocity
Support Modbus TCP/RTU slave protocol
Converts vibration signals into current signals representing multiple feature values

Introduction

iSN-701X is a vibration signal converter with Analog Output interface. It has a built-in 4 mA excitation current to power the integrated electronic piezoelectric (IEPE) accelerometers and 16-bit A/D Converter, and provide a sampling rate of up to 200kHz. iSN-701X converts Vibration signals into multiple feature values and then outputs current representing vibration feature values. Users also can obtain the feature values through the Modbus TCP/Modbus RTU. The iSN-701X module is recommended as your best choice for vibration monitoring and measurement

Application

Industrial Automation
Factory Automation
Process Automation
Etc…

Specifications

LED Indicators
Status	1 X PWR 1 X IEPE 1 X DAQ

Analog Input
Channels	1
Type	IEPE
Range	Voltage: ±10 V Current: 4 mA
Resolution	16 bit
Sampling Rate	5, 10, 20, 50, 100, 200 (kHz)

Analog Output
Channels	1
Type	Current x 1
Range	0~20mA, 4~20mA (Software Selectable)

COM Ports
Ports	1 x RS-485
Baud Rate	115200 bps Max.
Protocol	Modbus RTU

Ethernet
Ports	1 x RJ-45, 10/100Base-T(X)
Protocol	Modbus TCP

Power
Input Range	+10 ~ +30 VDC
Consumption	4.3 W

Mechanical
Dimensions (mm)	25 mm x 120 mm x 117 mm (W x L x H)
Installation	Din-Rail

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ 80 °C
Humidity	10 ~ 90% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

iSN-701X CR

Modbus TCP, Vibration signal to Current converter, 1 channel (RoHS)
