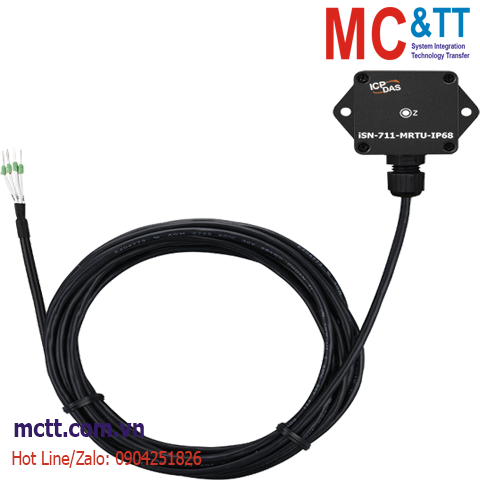

Module cảm biến đo rung, đo dao động 1 trục RS-485 Modbus RTU ICP DAS iSN-711-MRTU-IP68 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

IP68 Single-axis vibration sensor module (RS-485)

THÔNG TIN SẢN PHẨM

Feature

Single-axis vibration measurement
Frequency range: 10 Hz to 1K Hz
Amplitude range: ±8g
Data Format:
- Acceleration(mg): RMS, Maximum, P-P
-Velocity(mm/s): RMS
-Top 10 spectrum values(Amplitude/Frequency)
-Crest Factor
Supported Modbus RTU Slave protocol
IP68 enclosure rating

Introduction

The iSN-711-MRTU-IP68 is designed for industrial vibration measurement applications in harsh environments. with the IP68 protection rating, the device has even more protection against water, oil, dust, and much more. It has a built-in MEMS accelerometer, so it can easily realize equipment vibration monitoring. The module supports one RS-485 communication interface with Modbus RTU slave protocol, the user can transmit Modbus RTU commands to read the Vibration measurement data by RS-485 interface. The iSN-711-MRTU-IP68 is suitable for real-time vibration detection in critical locations for factory monitoring applications, such as production line equipment, motors, pumps, etc., where there is a need to monitor any vibration application.

Application

Vibration monitoring system

Specifications

Vibration Measurement
Axes	1
Sensor Type	MEMS
Amplitude Range	±8g
Frequency Range	10 Hz to 1K Hz

COM Ports
Ports	1 x RS-485(D+, D-)
Baud Rate	9600, 19200, 38400, 57600, 115200 bps
Data Format	N, 8, 1
Protocol	Modbus RTU

Power
Input Range	+10 ~ +30 VDC
Consumption	0.3 W

Mechanical
Dimensions (mm)	51 x 30 x 19 (W x L x H)
Installation	Wall-mount or magnet adsorption

Environment
Operating Temperature	-25 °C ~ +75 °C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iSN-711-MRTU-IP68 CR

IP68 Single-axis vibration sensor module (RS-485)(RoHS)

Module cảm biến đo rung, đo dao động 1 trục RS-485 Modbus RTU ICP DAS iSN-711-MRTU-IP68 CR

Vibration monitoring system
