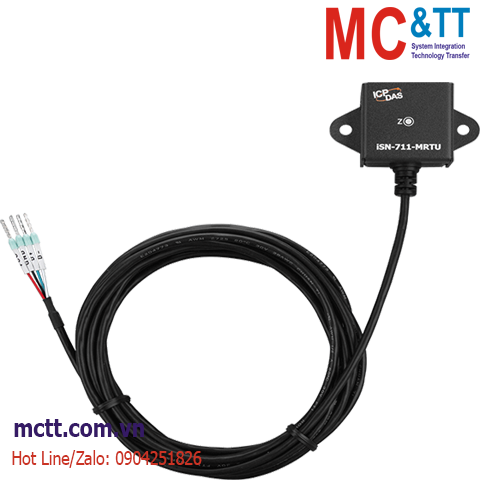

Module cảm biến đo rung, đo dao động 1 trục RS485 Modbus RTU ICP DAS iSN-711-MRTU CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Single axis vibration sensor module (RS-485)

THÔNG TIN SẢN PHẨM

Feature

1-axis vibration measurement
Frequency range: 10 Hz to 1K Hz
Amplitude range: ±8g
Data Format:
-Acceleration(mg): RMS, Maximum, P-P
-Velocity(mm/s): RMS
-Top 10 spectrum values(Amplitude/Frequency)
-Crest Factor
Supported Modbus RTU Slave protocol

Introduction

The iSN-711-MRTU module is an intelligent vibration detection device. It has a built-in MEMS accelerometer, so it can easily realize equipment vibration monitoring. The module supports one RS-485 communication interface with Modbus RTU slave protocol, the user can transmit Modbus RTU commands to read the sensor’s data by RS-485 interface. The iSN-711-MRTU is suitable for real-time vibration detection in critical locations for factory monitoring applications, such as production line equipment, motors, and pumps, etc., where there is a need to monitor any vibration application.

Application

Vibration monitoring system

Specifications

Vibration Measurement
Axes	1
Sensor Type	MEMS
Amplitude Range	±8g
Frequency Range	10 Hz to 1K Hz

COM Ports
Ports	1 x RS-485(D+, D-)
Baud Rate	2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Data Format	N, 8, 1
Protocol	Modbus RTU

Power
Input Range	+10 ~ +30 VDC
Consumption	0.3 W

Mechanical
Dimensions (mm)	51 x 30 x 19 (W x L x H)
Installation	Wall-mount or magnet adsorption

Environment
Operating Temperature	-25 °C ~ +75 °C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iSN-711-MRTU CR

Single axis vibration sensor module (RS-485)(RoHS)
