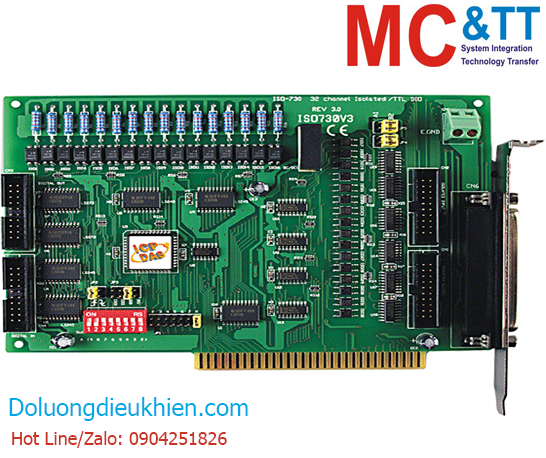

Card ISA 32 kênh DI + 32 kênh DO ICP DAS ISO-730 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

ISA Bus, 32-ch Isolated Digital I/O and 32-ch TTL Digital I/O Board

Gọi +84 904251826 để được trợ giúp

Card ISA 32 kênh DI + 32 kênh DO ICP DAS ISO-730 CR

Features

  • 16-channel optically isolated digital input
  • 16-chanel optically isolated open-collector output
  • 16-channel TTL level digital input (Non-isolation)
  • 16-channel TTL level digital output (Non-isolation)
  • One 37-pin D-sub connector and two 20-pin headers for isolated I/O
  • Two 20-pin header for TTL digital I/O (Non-Isolation)
  • Built-in DC/DC converter with 3000 VDC isolation
  • Interrupt handling
  • Interrupt source : channel 0 and channel 16
  • 3750 Vrms photo-isolation protection

Introduction

The ISO-730 card provide 32 isolated digital I/O channels (16 x DI and 16 x DO) and 32 TTL-level digital I/O channels (16 x DI and 16 x DO). Each of the 16 isolated digital input channel accept voltage from 5 V ~ 24 VDC and has a resistance of 1.2 kOhm. Every eight input channels use one external common ground. For example, channel 0 ~ 7 use EI.COM1 and channel 8 ~ 15 use EI-COM2. Each of the 16 isolated digital output channels equipped a darlington transistor. Every eight output channels use the common emitters. The power supply of the output port should use the external power. The channels 0 ~ 7 use EO-COM1 and channel 8 ~ 15 use EO-COM2. This interface board is easy installed in any PC/AT/XT. The board interface to field logic signed, eliminating ground loop problems and isolating the host computer from damaging voltages. The ISO-730 has one 37-pin D-sub connector and four 20-pin header. It is fully compatible to PCL-730.

Specification

Hardware
Connector Female DB37 x 1
20-pin box header x 4



Digital Input
Channels 16 (Isolated) + 16 (Non-isolated )
Type Isolated: Photocoupler (Sink and Source)
Non-isolated: 5V/TTL
TTL Input, ON Voltage Level 2.0 V Min.
TTL Input, OFF Voltage Level 0.8 V Max.
Response Speed 4 kHz (Typical) (Isolated)
1.0 MHz (Typical) (Non-isolate)
Trigger Mode Static Update
Wet Contact, ON Voltage Level 9 ~ 24 V (Min. 7 V; Max. 30 V)
Wet Contact, OFF Voltage Level 0 ~ 1 V
Isolation 3750 Vrms (Isolated)



Digital Output
Channels 16 (Isolated) + 16 (Non-isolated )
Type Isolated: Sink (NPN), Open Collector
Non-isolated: 5V/TTL
Operation Mode Static Update
Voltage Non-isolated:
Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Max. Load Current +30 V for each channel @ 100% duty (Isolated)
Sink: 2.4 mA @ 0.8 V (Non-isolated)
Source: 0.8 mA @ 2.0 V (Non-isolated)
Response Speed 4 kHz (Typical) (Isolated)
1.2 MHz (Typical) (Non-isolate)
Isolation 3750 Vrms (Isolated)



PC Bus
Type ISA
Data Bus 8-bit



Power
Consumption 800 mA @ +5 V



Mechanical
Dimensions (mm) 124 mm x 175 mm x 22 mm (W x L x D)



Environmental
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Data sheet

Documents

Odering information

ISO-730     CR  ISA Bus, 32-ch Isolated digital I/O and 32-ch TTL digital I/O Board (RoHS)
Includes one CA-4002 D-Sub connector
