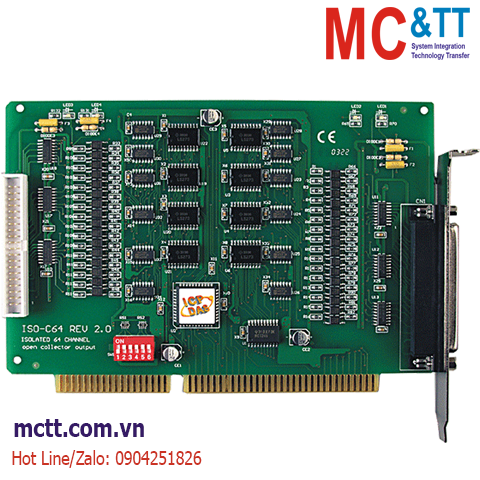

Miễn phí vận chuyển với đơn hàng từ 10.000.000đCard ISA 64 kênh đầu ra số DO ICP DAS ISO-C64 CR
Features
Introduction
The ISO-C64 has 64 channels of optically isolated digital outputs, arranged into four isolated banks. Each digital output offers a darlington transistor and integral suppression diode for inductive load. Isolated output channels are designed into group A, B, C, D. The power supply of the output port should be use the external power. This board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages.
Specification
| Hardware | |
|---|---|
| Connector | Female DB37 x 1 40-pin box header x 1 |
| Digital Output | |
|---|---|
| Channels | 64 |
| Type | Sink(NPN), Open Collector |
| Operation Mode | Static Update |
| Max. Load Current | 100 mA/+30 V for each channel @ 60% duty |
| Response Speed | 4 kHz (Typical) |
| Isolation | 3750 Vrms |
| PC Bus | |
|---|---|
| Type | ISA |
| Data Bus | 8-bit |
| Power | |
|---|---|
| Consumption | 500 mA @ +5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 15 x 178 x 22 (W x L x D) |
| Environmental | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Download
Odering information
| ISO-C64 CR | ISA Bus, Isolated 64-chanel digital Output Board (RoHS) Includes one CA-4037W cable and two CA-4002 D-Sub connectors |
