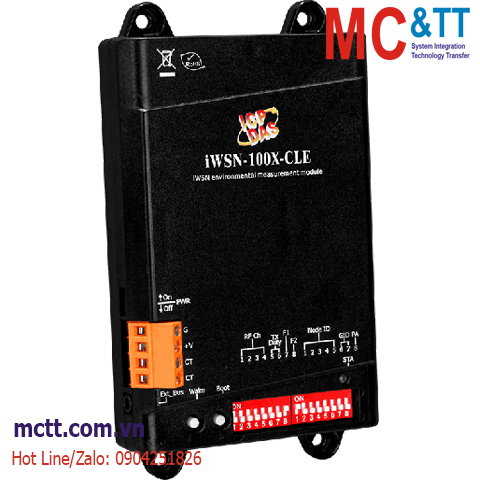

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule thu thập dữ liệu không dây iWSN + 1 kênh CT + 1 kênh mở rộng ICP DAS iWSN-100X-CLE CR
Feature
Introduction
iWSN wireless environmental sensing series including wireless signal sensing and expansion module. By means of sub-1G RF communication interface, iWSN wireless environmental sensing module can approach the real wireless deployment. It is suitable for measuring various signals such as temperature, humidity, CO2e, TVOC, CO, and vibration, provides users more choices for various applications. iWSN wireless environmental sensing module provides two modes of power supply: CT induced current or DC power supply. Diverse power supply delivers reliable electricity and reduces the cost of wiring. Considering the maintenance and installation, the iWSN wireless environmental sensing module uses the DIP switch for configuration. Through the flexibility of the expansion interface, the iWSN wireless environmental sensing module can be widely used in the application of saving power, big data analysis, and predict maintenance.
Application
Specifications
| Bus Interface | |
|---|---|
| Channels | 1 |
| Type | 4 pole 3.5mm audio cable with 25 cm wire lead |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | +/- 500 V |
| ESD (IEC 61000-4-2) | +/- 4 kV Contact |
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x STA |
| RF | |
|---|---|
| Channels | 0 ~ 15 configured by DIP switch |
| Group ID | 0 ~ 3 configured by DIP switch |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) | 100 m |
| Node ID | 1 ~ 31 configured by DIP switch |
| Working Duty | 1 sec, 10 sec, 30 sec and 60 sec 3 min, 5 min, 10 min and 30 min (configured by DIP switch) |
| Antenna | |
|---|---|
| Type | 0 dBi Omni directional PCB antenna |
| Power | |
|---|---|
| Input Type | Split-Core CT(Jumper-selectable )Φ16mm (100A);Φ24mm (200A);Φ36mm (400A); For charging only DC Power Supply(Jumper-select able) 1~3 VDC, 1A |
| Battery | Li-ion battery (compliant with UL1642) charged by CT induced current |
| Mechanical | |
|---|---|
| Dimensions (mm) | 85 x 152 x 25 (W x L x H) |
| Installation | Wall-mount or magnet adsorption |
| Environment | |
|---|---|
| Operating Temperature | 0 °C ~ +45 °C |
| Storage Temperature | -20 °C ~ +50 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information
| iWSN-100X-CLE CR | iWSN Environmental Sensing Module with 1-ch CT Input and 1 Expansion Interface (RoHS) (Asia Only) |
