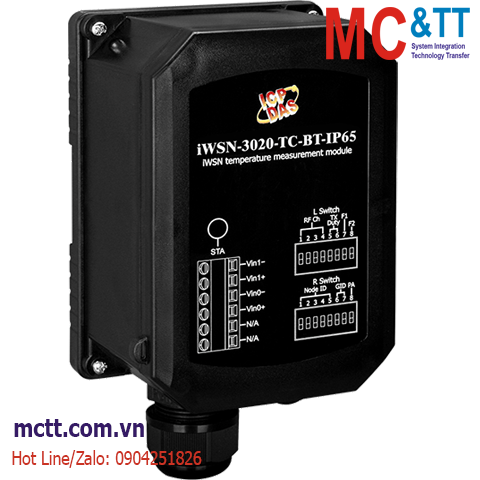

Module thu thập dữ liệu không dây iWSN + 2 kênh Thermocouple K ICP DAS iWSN-3020-TC-BT-IP65 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

iWSN temperature measurement module with two K-Type Thermocouple input channels

THÔNG TIN SẢN PHẨM

Feature

Two K-Type Thermocouple input channels
Range of temperature measurement：0℃ ~ 150℃
Accuracy of temperature measurement：±2℃
Uses 433 MHz radio frequency for communication
16 RF Channels and 4 Group ID, consist of maximum 64 RF sub-networks
Built-in disposable lithium battery
Supports wall-mount or DIN-Rail or magnet adsorption for installation

Introduction

iWSN-3020-TC-BT-IP65 is a wireless temperature sensing module in the iWSN series. It provides IP65 grade of dust-proof and water-proof, 433 MHz wireless communication interface, and supports 2-channel K-Type thermocouple temperature measurement. It will actively periodically response the measured temperature to the iWSN wireless data concentrator. This module has a built-in disposable lithium battery for power supply, additional power supply is not required. It is suitable for environments with extremely thick dust, no power supply, and difficult wiring restrictions. That is contribute to real wireless deployment. Furthermore, this module can set 16 wireless channels and 4 Group ID, which is helpful for distinguishing and controlling 433 MHz wireless networks. Users only need to uses the DIP switch for configuration to complete the settings, that let the module to be adjusted and maintained even simpler.

Application

Specifications

LED Indicators
Status	1 x STA

Temperature Measurement
Sensor Type	Thermocouple K-Type
Channels	2
Range	0 °C ~ +150 °C
Accuracy	±2 °C

RF
Channels	0 ~ 15 configured by DIP switch
Group ID	0 ~ 3 configured by DIP switch
Radio Frequency	433MHz
Transmission Distance (LoS)	100 m
Node ID	1 ~ 31 configured by DIP switch
Working Duty	1 sec, 10 sec, 30 sec and 60 sec (configured by DIP switch)

Power
Battery	CR123A (3.0 V, 1700mAh) x 2 Battery Life: 1 year (Working Duty: 10 sec) 3 years (Working Duty: 30 sec) 5 years (Working Duty: 60 sec)

Mechanical
Dimensions (mm)	95 x 165 x 75 (W x L x H)
Installation	Wall-mount or DIN-Rail or magnet adsorption
Ingress Protection Rating	IP65

Environment
Operating Temperature	0 °C ~ +60 °C
Storage Temperature	-20 °C ~ +45 °C
Humidity	20 ~ 65% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iWSN-3020-TC-BT-IP65 CR

iWSN temperature measurement module with two K-Type Thermocouple input channels (RoHS) (Asia Only)
