Module thu thập dữ liệu không dây iWSN + 1 kênh CT + 1 kênh Thermistor + 1 kênh mở rộng ICP DAS iWSN-101X-CLE CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

iWSN Environmental Sensing Module with 1-ch CT Input, 1-ch Thermistor Input and 1 Expansion Interface

THÔNG TIN SẢN PHẨM

Feature

Self-powered by built-in a chargeable Li-ion battery
Split-core current transformer (CT) for easy installation
Energy harvest from the CT induced electricity
Uses 433 MHz radio frequency for communication
16 RF Channels and 4 Group ID, consist of maximum 64 RF sub-networks
Provides expansion interface for flexibility and extensibility
Offers wall-mount mechanism and magnet for installation
Provides two modes of power supply: CT induced current or DC power supply

Introduction

iWSN wireless environmental sensing series including wireless signal sensing and expansion module. By means of sub-1G RF communication interface, iWSN wireless environmental sensing module can approach to the real wireless deployment. It is suitable for measuring various signals such as temperature, humidity, CO2e, TVOC, CO and vibration, provides users more choices for various applications. iWSN wireless environmental sensing module provide two modes of power supply: CT induced current or DC power supply. Diverse power supply delivers reliable electricity and reduces the cost of wiring. Considering the maintenance and installation, the iWSN wireless environmental sensing module uses the DIP switch for configuration. Through the flexibility of the expansion interface, the iWSN wireless environmental sensing module can be widely used in the application of saving power, big data analysis, and predict maintenance.

Application

Specifications

Bus Interface
Channels	1
Type	4 pole 3.5mm audio cable with 25 cm wire lead

EMS Protection
EFT (IEC 61000-4-4)	+/- 500 V
ESD (IEC 61000-4-2)	+/- 4 kV Contact

LED Indicators
Status	1 x Power 1 x STA

Temperature Measurement
Channels	1
Range	0 °C ~ +80 °C
Accuracy	±2 °C

RF
Channels	0 ~ 15 configured by DIP switch
Group ID	0 ~ 3 configured by DIP switch
Radio Frequency	433.1000 ~ 434.6000 MHz
Transmission Power	9±1dBm (PA Off) / 18±1dBm (PA On)
Transmission Distance (LoS)	100 m
Node ID	1 ~ 31 configured by DIP switch
Working Duty	1 sec, 10 sec, 30 sec and 60 sec 3 min, 5 min, 10 min and 30 min (configured by DIP switch)

Antenna
Type	0 dBi Omni directional PCB antenna

Power
Input Type	Split-Core CT(Jumper-selectable )Φ16mm (100A);Φ24mm (200A);;Φ36mm (400A); For charging only DC Power Supply(Jumper-select able) 1~3 VDC, 1A
Battery	Li-ion battery (compliant with UL1642) charged by CT induced current

Mechanical
Dimensions (mm)	94 x 152 x 21 (W x L x H)
Installation	Wall-mount or magnet adsorption

Environment
Operating Temperature	0 °C ~ +45 °C
Storage Temperature	-20 °C ~ +50 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

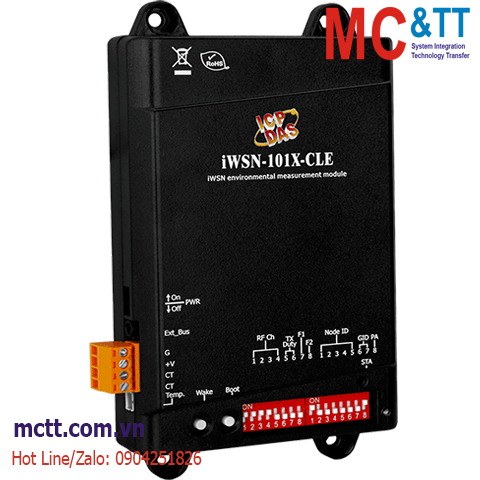

iWSN-101X-CLE CR

iWSN Environmental Sensing Module with 1-ch CT Input, 1-ch Thermistor Input and 1 Expansion Interface (RoHS) (Asia Only)
