Cảm biến đo lực nén 2 - 100 kN Lorenz K-1250
K-1250, Thru Hole

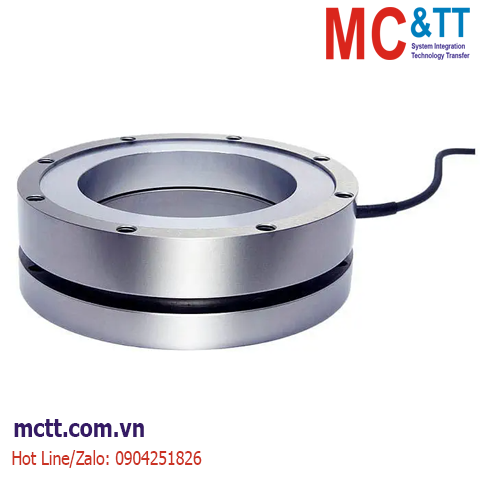

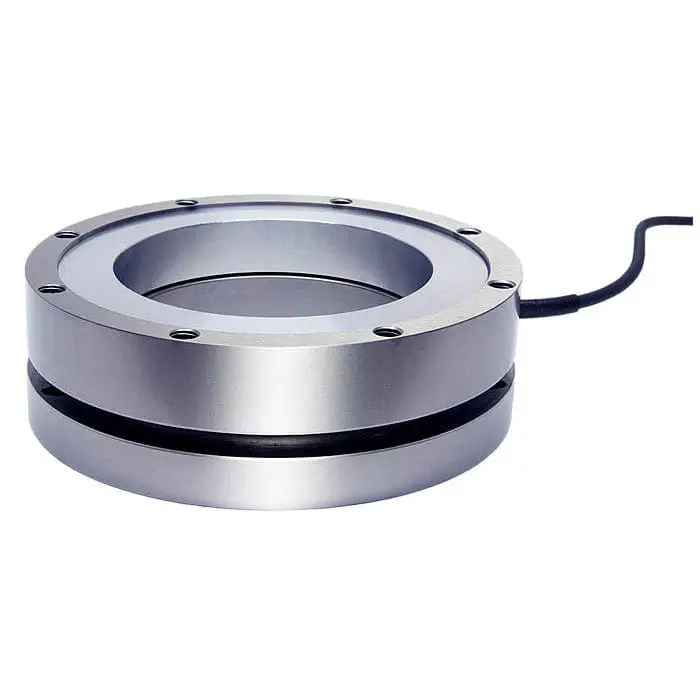

The miniature ring load cells of the K-1250 have been specially designed to show-up with small external dimensions. These sensors can be used for a wide range of industrial and laboratory applications due to their small size. The small diameter
Features:
K-1250 - Specifications
Type | Thru-Hole |
Application | Tension & Compression |
Full Scale | 450 lbs |
1120 lbs | |
2200 lbs | |
4500 lbs | |
11200 lbs | |
22000 lbs | |
Output | 1 mV/V |
Precision | ±0.5 % FS |
Excitation | 2 V - 12 V DC |
IP Rating | IP60 |
Min Temperature | 0 °C |
Max Temperature | 60 °C |
Download
PDF Datasheet: | 080797a_K-1250_en.pdf |
---|
