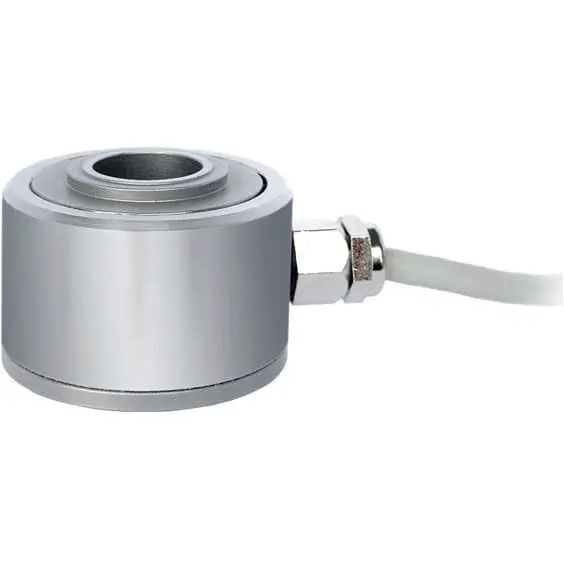

Compression Force Sensor K-18 - Lorenz Messtechnik GmbH
Cảm biến đo lực nén 5 - 5000 kN Lorenz K-18
K-18, Thru-Hole
The K-18 load cell have been specially designed to show-up with small external dimensions. These sensors can be used for a wide range of industrial and laboratory applications due to their small size. The small diameter and height make this..
Features:
K-18 - Specifications
Type | Thru-Hole |
Application | Compression |
Full Scale | 1120 lbs |
2200 lbs | |
4500 lbs | |
11200 lbs | |
22000 lbs | |
45000 lbs | |
112000 lbs | |
225000 lbs | |
450000 lbs | |
670000 lbs | |
1120000 lbs | |
Output | 1 mV/V |
Precision | ±0.5 % FS |
Excitation | 2 V - 12 V DC |
IP Rating | IP67 |
Min Temperature | -10 °C |
Max Temperature | 70 °C |
Download
Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 6-pin female cable connector and free soldered ends |
---|---|
PDF Datasheet: | 080795a_K-18_en.pdf |
