Universal PCI, 110 kS/s, 32-ch, 12-bit AI Multifunction Board

THÔNG TIN SẢN PHẨM

Features

Supports the +3.3/+5 V PCI bus
Card ID Function (SMD Switch)
12-bit AD Converter, 110kHz Sampling Rate
32 single-ended/ 16 differential Analog Inputs
Programmable low gain: 1, 2, 4, 8
16 channels Digital Input
16 channels Digital Output
Internal/external trigger
Pull-high/Pull-low Jumpers for DI Ports

Introduction

The PCI-1002LU supports 3.3 V/5 V PCI bus. These cards are a family of A/D board and features low-gain 110 kS/s analog input. It provides 12-bit 32 single-ended or 16 differential analog inputs, 16 digital input and 16 digital output channels.

The PCI-1002LU provide The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

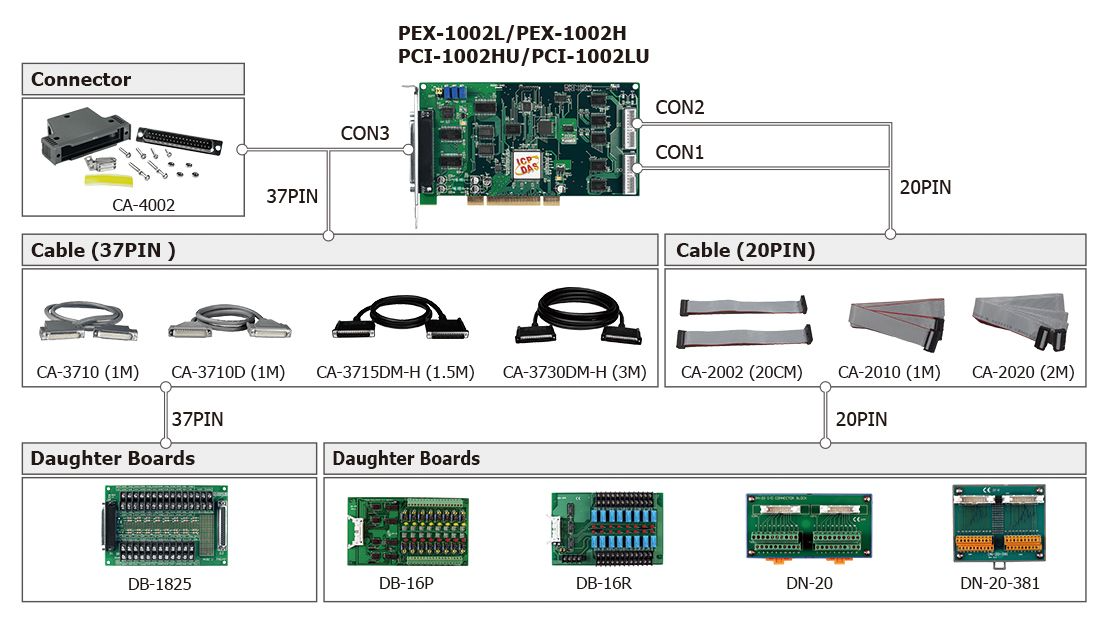

Accessories

Specification

Hardware
Connector	Female DB37 x 1 20-pin box header x 2

Analog Input
Channels	32 single-ended/16 differential
Range	Gain: 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V
Resolution	12-bit
Accuracy	0.01% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	110 kS/s. Max.
Input Impedance	10 MΩ/6 Pf
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	±4 ppm/°C of FSR
Trigger Mode	Software, Internal programmable pacer, External (5 V/TTL)
Data Transfer	Polling, Interrupt

Digital Input
Channels	16
Type	5 V/TTL
TTL Input, ON Voltage Level	2.0 V Min.
TTL Input, OFF Voltage Level	0.8 V Max.
Response Speed	1.0 MHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	16
Type	5 V/TTL
Operation Mode	Static Update
Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Max. Load Current	Sink: 2.4 mA Source: 0.8 mA
Response Speed	1.0 MHz (Typical)

Timer/Counter/Frequency
Channels	3 (Independent x 1/Internal pacer x 1/External pacer x 1)
Type	5 V/TTL
Resolution	16-bit
Input Frequency	10 MHz Max.
Reference Clock	Internal: 4 MHz

PC Bus
Type	3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus	16-bit

Power
Consumption	960 mA @ +5 V

Mechanical
Dimensions (mm)	105 x 188 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

D ocuments

Odering information

PCI-1002LU/S CR

Universal PCI, 110 kS/s, 32-ch, 12-bit Analog Input Multifunction Board (RoHS)
Includes one CA-3710 D-Sub cable
