Card PCI 64 kênh đầu vào tương tự AI 16 bits 1 MS/s ICP DAS PCI-AD64SU CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Universal PCI, 1 MS/s, 64-ch, 16-bit AI Board (4 K WORD FIFO)

THÔNG TIN SẢN PHẨM

Features

Universal PCI (3.3 V/5 V) Interface
Supports Card ID (SMD Switch)
64 Single-ended/32 Diff erential Analog Input Channels
- 16-bit ADC with Max. 1 MS/s Sampling Rate
- 4096-sample Hardware FIFO for Analog Input
- AD Trigger Mode: Software, Pacer
- AD Data Transfer: Polling, Interrupt

Introduction

PCI-AD64SU is a high-resolution high channel count analog input card for the Universal PCI bus. Its sampling rate is up to 1 MS/s and 16-bit resolution provides the power needed for most data acquisition applications. PCI-AD64SU provides 64 single-ended, 32 differential analog input channels. It also has built in a 4k-sample FIFO buffer for analog input data.

The PCI-AD64SU also includes an onboard Card ID that enables the board to be recognized via software if two or more PCI-AD64SU cards are installed in the same computer.

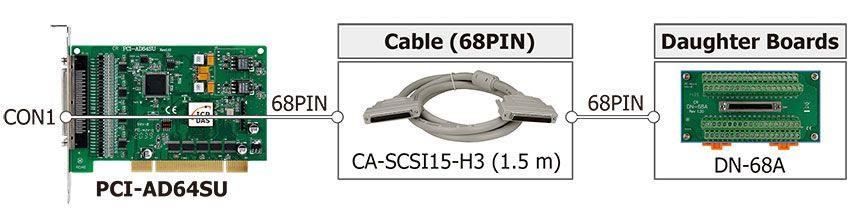

Accessories

Applications

High speed data acquisition system
Process monitor and control.
Vibration analysis.

Click to view the Introduction of https://mctt.vn/pci-icp-das

Specifications

Hardware
Card ID	Yes (4-bit)
Connector	Female SCSI II 68-pin x 1

Analog Input
Channels	64 Single-ended/32 Diff erential
Range	Gain: 1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V
Accuracy	0.1% of FSR ±1 LSB @ 25°C, ±10 V
Sampling Rate	Fixed channel: 1 MS/s (Max.) Scan channel: 250 kS/s (Max.)
Overvoltage Protection	Continuous ±35 Vp-p
FIFO Size	4096 Samples

PC Bus
Type	3.3 V/5 V Universal PCI, 32-bit, 33 MHz

Power
Consumption	1 A @ +5 V (Max.)

Mechanical
Dimensions (mm)	146 X 120.5 X 21.6 (W x L x D)

Environment
Operating Temperature	0 ~ +60°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PCI-AD64SU CR

Universal PCI, 1 MS/s, 64-ch, 16-bit AI Board (4 K WORD FIFO) (RoHS)
