Card PCI 32 kênh AI 12 bits 44 kS/s + 2 kênh AO + 16 kênh DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS PCI-1202HU/8K CR

Features

Supports the +3.3/+5 V PCI bus
12-bit AD Converter, 44kHz Sampling Rate
32 single-ended/ 16 differential Analog Inputs
Built-in 8192 samples FIFO for Analog Inputs
Three external triggers: post-trigger, pre-trigger, middle-trigger
2 channels, 12-bit volatge output
16 channels Digital Input
16 channels Digital Output
Pull-high/Pull-low Jumpers for DI Ports
Internal / external trigger

Introduction

The PCI-1202HU is a family of high performance data acquisition board. They feature a continuous A/D acquisition function of up to 44 kHz for high gain under DOS and offer two 12-bit D/A output channels, 16 digital input channels and 16 digital output channels. The PCI-1202HU provides 32-channel single-ended or 16-channel differential analog inputs. The PCI-1202LU features " MagicScan" function and Continuous Capture function.

The PCI-1202HU Universal PCI card supports both 5 V and 3.3 V. These cards add new designs of Card ID switch with which users can recognize the board by the ID via software when using two or more PCI-1202HU cards in one computer. The pull-high/low jumpers of the card allow user to predefine the DI status instead of floating when the DI channels are unconnected or broken.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

ICP DAS PC-Based Multifunction Board Selection Guide
Model Name	Bus	D/A Channel	A/D Channel	A/D Sampling Rate	FIFO Size	Software Trigger (Polling)	Pacer Scan (Magicscan)	Post-trigger Pre-trigger Middle-trigger	Interrupt function
PEX-1202L	PCI Express	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	110 kS./s	1 k	V	V	V	-
PCI-1202LU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	110 kS./s	1 k	V	V	V	-
PEX-1202H	PCI Express	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	1 k	V	V	V	-
PEX-1202HU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	1 k	V	V	V	-
PCI-1602U	Universal PCI	12-bit, 2-ch	16-bit, 32 S.E/16 Diff	100 kS./s	8 k	V	V	V	-
PCI-1602FU	Universal PCI	12-bit, 2-ch	16-bit, 32 S.E/16 Diff	200 kS./s	8 k	V	V	V	-
PCI-1800LU	Universal PCI	12-bit, 2-ch	12-bit, 16 S.E/8 Diff	330 kS./	1 k	V	V	V	-
PCI-1800HU	Universal PCI	12-bit, 2-ch	12-bit, 16 S.E/8 Diff	44 kS./s	1 k	V	V	V	-
PCI-1802LU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	330 kS./s	8 k	V	V	V	-
PCI-1802HU	Universal PCI	12-bit, 2-ch	12-bit, 32 S.E/16 Diff	44 kS./s	8 k	V	V	V	-
PCI-822LU	Universal PCI	16-bit, 2-ch	12-bit, 32 S.E/16 Diff	250 kS./s	8 k	V	V	V	V	Cost-effective Programmable DIO
PCI-826LU	Universal PCI	16-bit, 2-ch	16-bit, 32 S.E/16 Diff	250 kS./s	8 k	V	V	V	V	Cost-effective Programmable DIO

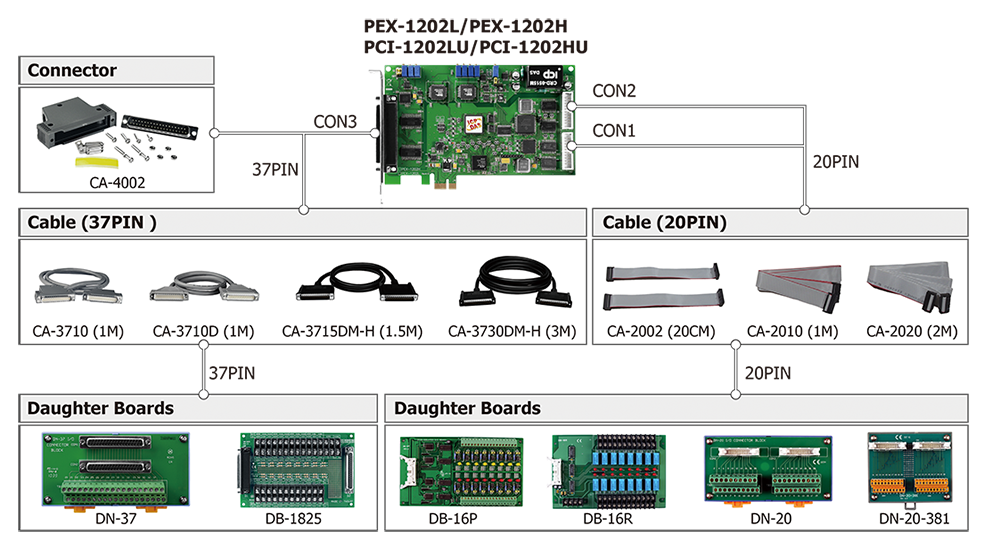

Accessories

Specification

Hardware
Card ID	Yes (4-bit) for Version 4.0 or above
Connector	Female DB37 x 1 Male 20-bit ribbon x 2

Analog Input
Channels	32 single-ended/16 differential
Range	Gain: 0.5, 1, 5, 10, 50, 100, 500 ,1000 Bipolar Range: ±10 V, ±5 V, ±1 V, ±0.5 V, ±0.1 V, ±0.05 V, ±0.01 V, ±0.005 V Unipolar Range: 0 ~ 10 V, 0 ~ 1 V, 0 ~ 0.1 V, 0 ~ 0.01 V
Resolution	12-bit
Accuracy	0.1% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	44 kS/s. Max.
Input Impedance	10 MΩ/6 pF
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	±4 ppm/°C of FSR
FIFO Size	8192 samples
Trigger Mode	Software, Internal programmable pacer, External (5 V/TTL)
Data Transfer	Polling

Analog Output
Channels	2
Range	±5 V, ±10 V
Resolution	12-bit
Accuracy	0.06% of FSR ±1 LSB @ 25 °C, ±10 V
Voltage Output Capability	±5 mA
Response Time	1.0 MHz (Typical)
Slew Rate	8.33 V/μs
Operation Mode	Static Update

Digital Input
Channels	16
Type	5 V/TTL
TTL Input, ON Voltage Level	2.0 V Min.
TTL Input, OFF Voltage Level	0.8 V Max.
Response Speed	1.0 MHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	16
Type	5 V/TTL
Operation Mode	Static Update
Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Max. Load Current	Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V
Response Speed	1.0 MHz (Typical)

Timer/Counter/Frequency
Channels	3 (Independent x 1/Internal pacer x 1/External pacer x 1)
Type	5 V/TTL
Resolution	16-bit
Input Frequency	10 MHz Max.
Reference Clock	Internal: 8 MHz

PC Bus
Type	3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus	16-bit

Power
Consumption	300 mA @ +5 V

Mechanical
Dimensions (mm)	105 x 196 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Manual

Data sheet

Odering information

PCI-1202HU/8K CR

Universal PCI, 32-ch, 12-bit, 44 kS/s Analog Input Multifunction Board (RoHS)
Includes one CA-4002 D-Sub connector
