Miễn phí vận chuyển với đơn hàng từ 10.000.000đCard PCI Express 144 kênh vào/ra số DIO ICP DAS PEX-D144LS CR
Features
Introduction

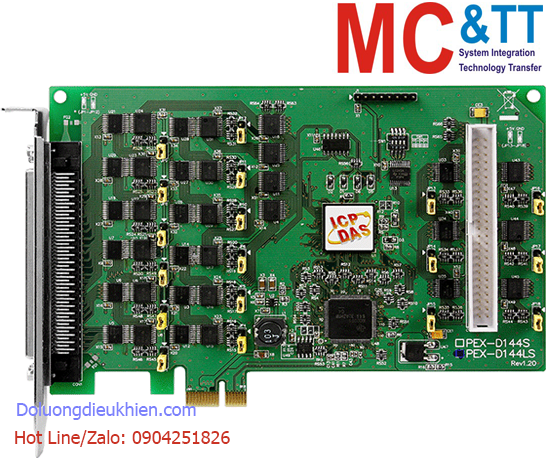

The PEX-D144LS supports PCI Express bus. These cards provide 144 TTL digital I/O lines that are grouped into eighteen 8-bit bi-directional ports. Each group of three 8-bit ports is arranged on the connector as Port A (PA), Port B (PB) and Port C (PC), respectively, and all ports are configured as inputs Ports on power-up or after a reset.
The PEX-D144LS provides a high-density connector that reduces the amount of installation space required for the card in the computer. The PEX-D144LS cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer. The PEX-D144LS also adds pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
Comparison Table |
||||
|---|---|---|---|---|
| Model | Interface | DI Pull-High/Low | Compatibility | Advantage |
|
PEX-D144LS |
PCI Express | Yes | 5 V/CMOS | Low power consumption、 Low temperature |
| PIO-D144LU | Universal PCI | Yes | 5 V/CMOS | Low power consumption、 Low temperature |
| PIO-D144U | Universal PCI | No | 5 V/TTL | High DO Driving (Output Capability) |
Specification
| Hardware | |
|---|---|
| Card ID | Yes (4-bit) |

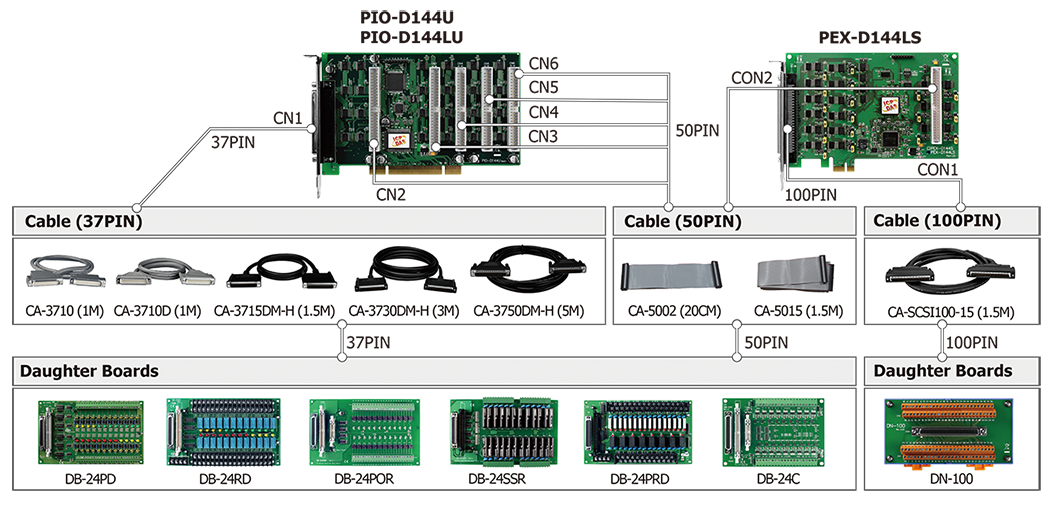

| Connector | Female SCSI II 100-pin x 1 50-pin box header x 1 |
| Digital Input | |
|---|---|
| Channels | 144 (Bi-Direction) |
| Type | 5 V/CMOS |
| TTL Input, ON Voltage Level | 2.0 V Min. |
| TTL Input, OFF Voltage Level | 0.8 V Max. |
| Response Speed | 250 kHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
|---|---|
| Channels | 144 (Bi-Direction) |
| Type | 5 V/CMOS |
| Operation Mode | Static Update |
| Voltage | Logic 0: 0.1 V Max. Logic 1: 4.4 V Min. |
| Max. Load Current | Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V |
| Response Speed | 250 kHz (Typical) |
| PC Bus | |
|---|---|
| Type | PCI Express x 1 |
| Data Bus | 8-bit |
| Power | |
|---|---|
| Consumption | 750 mA @ +3.3 V 0 mA @ +12 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 100 x 162 x 22 (W x L x D) |
| Environmental | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Download
Odering information
| PEX-D144LS CR | PCI Express, 144-ch Digital I/O Board (SCSI II Connector, RoHS) |
