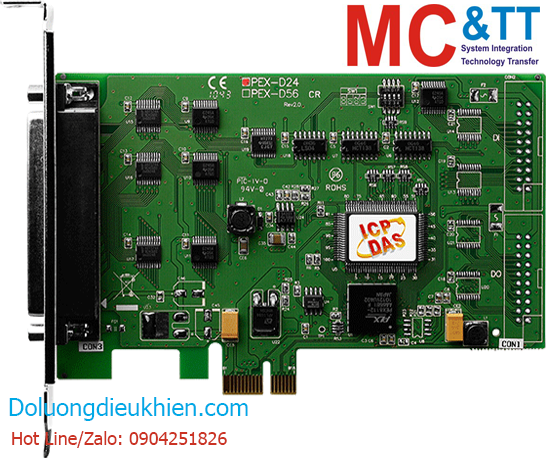

Card PCI Express 24 kênh đầu vào/ra số DIO ICP DAS PEX-D24 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

PCI Express, 24-ch Digital I/O Board

THÔNG TIN SẢN PHẨM

Features

Supports PCI Express x1
24 channels of digital I/O
Bi-direction programmable I/O ports under software control
4 interrupt sources
Card ID Function(SMD Switch)
Digital Output status readback

Introduction

The PEX-D24 supports PCI Express bus. The PEX-D24 consists of three 8-bit bi-direction ports. The 8-bit ports are named as port A (PA), port B (PB) and port C (PC) respectively. All ports are configured as inputs upon power-up or reset.

The PEX-D24 has a Card ID switch with which users can recognize the board by the ID via software when using two or more PEX-D24 cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

Accessories

Specification

Hardware
Card ID	Yes (4-bit)
Connector	Female DB37 x 1

Digital Input
Channels	24 (Bi-Direction)
Type	5 V/TTL
TTL Input, ON Voltage Level	2.0 V Min.
TTL Input, OFF Voltage Level	0.8 V Max.
Response Speed	500 kHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	24 (Bi-Direction)
Type	5 V/TTL
Operation Mode	Static Update
Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Max. Load Current	Sink: 64 mA @ 0.8 V Source: 32 mA @ 2.0 V
Response Speed	500 kHz (Typical)

PC Bus
Type	PCI Express x 1
Data Bus	8-bit

Power
Consumption	650 mA @ +3.3 V 0 mA @ +12 V

Mechanical
Dimensions (mm)	86 x 134 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Ordering information

PEX-D24 CR

PCI Express, 24-ch Digital I/O Board (RoHS)
