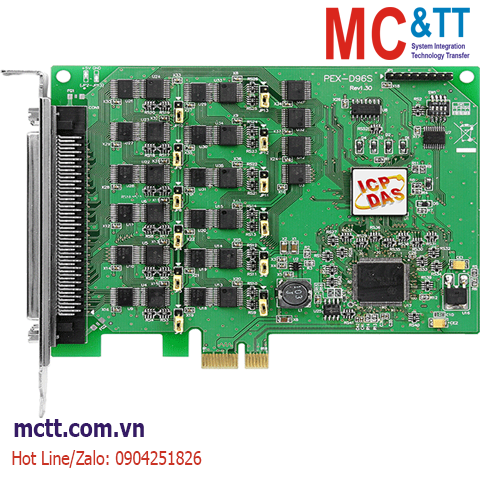

Miễn phí vận chuyển với đơn hàng từ 10.000.000đCard PCI Express 96 kênh vào/ra số DIO ICP DAS PEX-D96S CR
Features
Introduction
The PEX-D96S supports PCI Express bus. These cards provide 96 TTL Digital I/O lines that consist of twelve 8-bit bi-directional ports. Each group of three 8-bit ports is arranged on the connector as Port A (PA), Port B (PB) and Port C (PC), respectively, and all ports are configured as inputs ports on power-up or after a reset.
The PEX-D96S provides a single high-density connector that reduces the amount of installation space required for the card in the computer. The PEX-D96S cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer. The pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
Comparison Table |
||||
|---|---|---|---|---|
| Model | Interface | DI Pull-High/Low | Compatibility | Advantage |
| PEX-D96S | PCI Express | Yes | 5 V/CMOS | Low power consumption、 Low temperature |
| PIO-D96SU | Universal PCI | Yes | 5 V/CMOS | Low power consumption、 Low temperature |
| PIO-D96U | Universal PCI | Yes | 5 V/TTL | High DO Driving (Output Capability) |

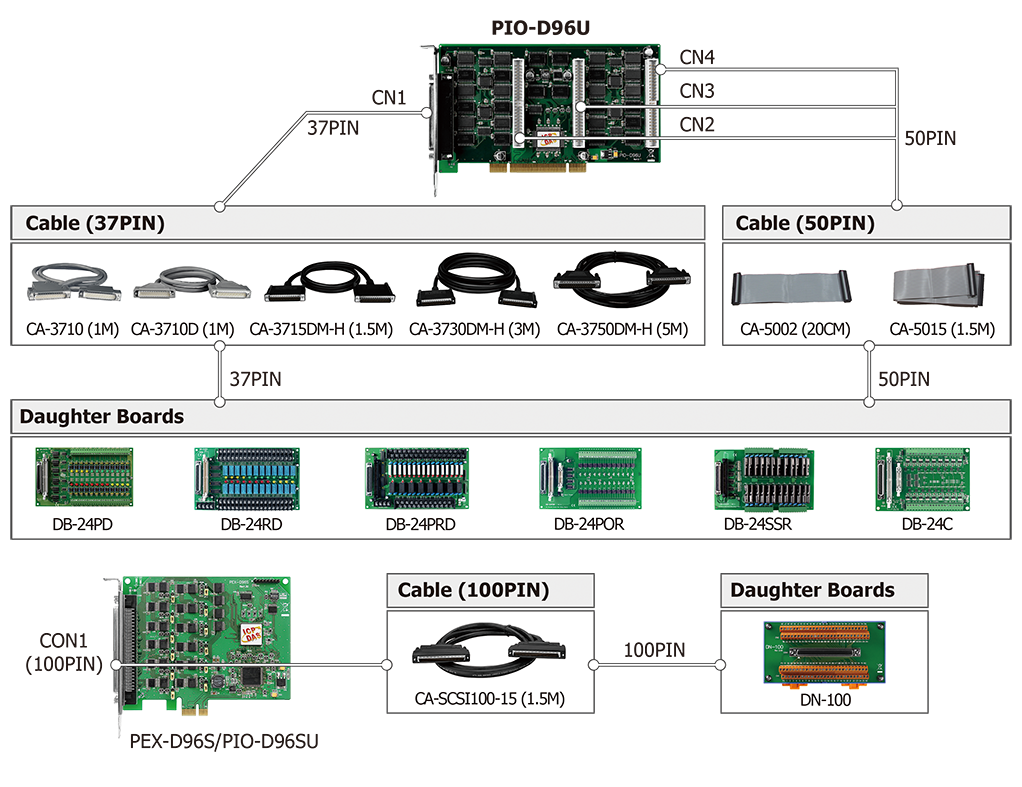

Accessories
Specification
| Hardware | |
|---|---|
| Card ID | Yes (4-bit) |
| Connector | Female SCSI II 100-pin x 1 |
| Digital Input | |
|---|---|
| Channels | 96 (Bi-Direction) |
| Type | 5 V/CMOS |
| TTL Input, ON Voltage Level | 2.0 V Min. |
| TTL Input, OFF Voltage Level | 0.8 V Max. |
| Response Speed | 500 kHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
|---|---|
| Channels | 96 (Bi-Direction) |
| Type | 5 V/CMOS |
| Operation Mode | Static Update |
| Voltage | Logic 0: 0.1 V Max. Logic 1: 4.4 V Min. |
| Max. Load Current | Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V |
| Response Speed | 500 kHz (Typical) |
| PC Bus | |
|---|---|
| Type | PCI Express x 1 |
| Data Bus | 8-bit |
| Power | |
|---|---|
| Consumption | 650 mA @ +3.3 V 0 mA @ +12 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 95 x 130 x 22 (W x L x D) |
| Environmental | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Download
Odering information
| PEX-D96S CR | PCI Express, 96-ch Digital I/O Board (SCSI II Connector, RoHS) |
