Card PCI Express 8 kênh đầu vào số DI + 8 kênh đầu ra Relay ICP DAS PEX-P8R8i CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

PCI Express, 8-ch Isolated DI, 8-ch Relay Output Board

THÔNG TIN SẢN PHẨM

Feature

Supports PCI Express x1
Card ID Function(SMD Switch)
8 channels relay output
8 channels optically isolated digital input
Selectable DC signal input filter
AC Signal input with filter
3750 Vrms photo-isolation protection

Introduction

The PEX-P8R8i is a PCI Express card. Each contain 8 photo coupler digital inputs that provide 3750 Vrms isolation protection, allowing the input signals to be completely floated so as to prevent ground loops. They are also equipped with 8 relay output channels to enable the control of the ON/OFF state of external devices, drive external relays or small power switches, or activate alarms, etc.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

Comparsion

Model Name	PCI-P16R16U	PISO-P16R16U	PEX-P16R16i	PEX-P8R8i
Bus	Universal PCI	Universal PCI	PCI Express x1
Relays	Form C x 8 Form A x 8			Form C x 4 Form A x 4
Digital Input	16-ch with 5000 Vrms Isolation	16-ch with 3750 Vrms Isolation		8-ch with 3750 Vrms Isolation
Card ID	-	Yes (4-bit)
Data bus	16-bit	8-bit
Driver	UniDAQ SDK/Driver, or PCI-P16R16 SDK/Driver	UniDAQ SDK/Driver, or PISO-DIO SDK/Driver
Remarks	-	Suggested for new users

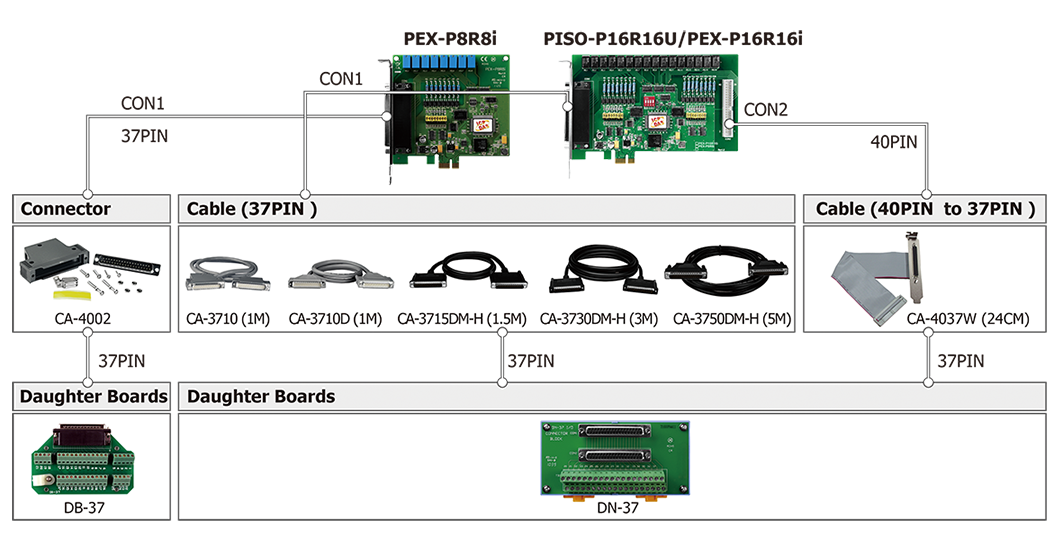

Accessories

Specification

Hardware
Card ID	Yes (4-bit)
Connector	Female DB37 x 1

Digital Input
Channels	8
Type	Photocoupler (Sink or Source)
Response Speed	Without Filter: 50 kHz (Typical) With Filter: 0.455 kHz(Typical)
Trigger Mode	Static Update
Wet Contact, ON Voltage Level	AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz)
Wet Contact, OFF Voltage Level	AC/DC 0 ~ 1 V
Isolation	3750 Vrms

Relay Output
Channels	8
Type	4 SPDT, 4 SPST
Contact Rating	AC:120 V@0.5 A DC: 24 V@1 A
Operate Time	1 ms (typical)
Release Time	7 ms (typical)
Electrical Endurance	100,000 ops.
Mechanical Endurance	5,000,000 ops.

PC Bus
Type	PCI-Express x 1
Data Bus	8-bit

Power
Consumption	450 mA @ +3.3 V 200 mA @ +12 V

Mechanical
Dimensions (mm)	112 x 115 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Manual

Data sheet

Odering information

PEX-P8R8i CR

PCI Express, 8-ch Optically Isolated Digital Input, 8-ch Relay Output (RoHS)
Includes one CA-4002 D-Sub connector
