Module Profibus Slave 2 khe cắm module I/O ICP DAS PROFI-8255-G CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

PROFIBUS Remote I/O Unit with 2 I/O Slots

THÔNG TIN SẢN PHẨM

Features

• Protocol & Hierarchy : DP-V0 & DP-V1 (Read/Write) Slave
• Supports Transmission Rate (Kbps) : 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
• Transmission Rate Setting : detected automatically
• Address Setting : 0~126 set by Rotary switches, SSA-telegram set by DP-Master(Class 2 only)
• Indicators : PWR, ERR, and RUN LEDs
• I/O modules Configuration : Configured by GSD file
• Supports I/O modules hot-swap : I-87K High Profile series
• Network Isolation Protection : High Speed iCoupler
• DC Isolation Protection : 3000VDC on PROFIBUS side
• 4KV ESD Protection : Contact for each terminal

Introduction

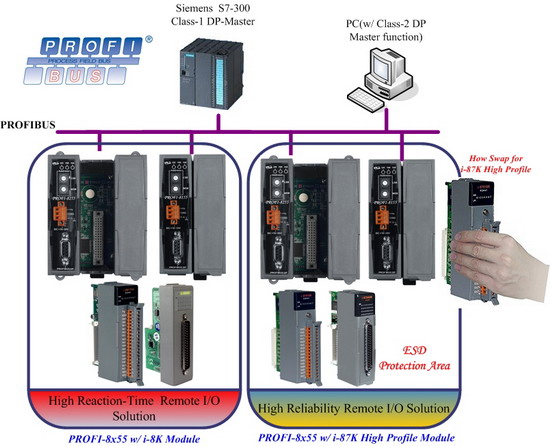

The PROFI-8255 Remote I/O Unit is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 2 slots for ICPDAS I-8k series, I-87k Low Profile series, and I-87k High Profiles series I/O modules. In addition, we also provide hot-swap function for I-87k High Profiles series I/O modules. To setup network, users can choose and configure I/O modules by using the GSD file without any other setting tools.

Specifications

CPU Module
CPU	80186, 80 MHz or compatible
EEPROM	2 KB
Flash	512 KB
SRAM	512 KB
Watchdog Timer	Watchdog IC CPU built-in

LED Indicators
Status	PWR LED, RUN LED, ERR LED

I/O Expansion
Slots	2

COM Ports
Ports	RS-232 on board (For updating firmware)Note 1.

PROFIBUS
Controller	Profichil VPC3+C
Transceiver	ADI ADM2486
Baud Rate	9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol	DP-V0 DP-V1

Power
Consumption	3 W

Mechanical
Dimensions (mm)	95 x 91 x 132 (W x L x H)
Installation	DIN-Rail or Wall Mounting

Environmental
Operating Temperature	-25 ~ +75℃
Storage Temperature	-40 ~ +80 ℃
Humidity	5 ~ 95% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

PROFI-8255-G CR

PROFIBUS Remote I/O Unit with 2 I/O Slots (RoHS)
