Radio modem 2.4 GHz giao tiếp RS-232/485 ICP DAS RFU-2400-RU400 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

2.4 GHz RF Wireless Modem with 1-port RS-232/RS-485 (RoHS) (For Russia Only)

Gọi +84 904251826 để được trợ giúp

Radio modem 2.4 GHz giao tiếp RS-232/485 ICP DAS RFU-2400-RU400 CR

Features

  • ISM 2.4 GHz Operating Frequency
  • Direct Sequence Spread Spectrum (DSSS) RF technology
  • Wireless Transmission Range up to 400 m (Default)
  • RS-232/RS-485 Interface Supported
  • Half-duplex communication up to 115200 bps
  • Full-duplex communication up to 57600 bps
  • Fully External Switch for the Hardware Configuration
  • Surge and ESD Protection
  • DIN-Rail Mountable

Introduction

The RFU-2400-RU400 is a 2.4 GHz radio frequency modem that provides RS-232 and RS-485 port interfaces. It is designed to act as a wireless bridge to convert signals between serial and wireless formats, and is great for applications when the physical wire deployment is inconvenient. The RFU-2400-RU400 makes it easy to build a low-cost data acquisition and control application between a host and a range of remote sensors via wireless communication.


The RFU-2400-RU400 is a spread spectrum radio frequency (RF) modem based on the IEEE 802.15.4 standard. The IEEE 802.15.4 standard is operating on the ISM bands which uses a transmission frequency range between 2405 and 2480 MHz. A total of 16 channels are available and each with a channel separation of 5 MHz. Two operating modes are also supported, including Peer-to-Peer (P2P) mode, which allows full-duplex communication, and Broadcast mode, which allows half-duplex functionality in multi-point communication.

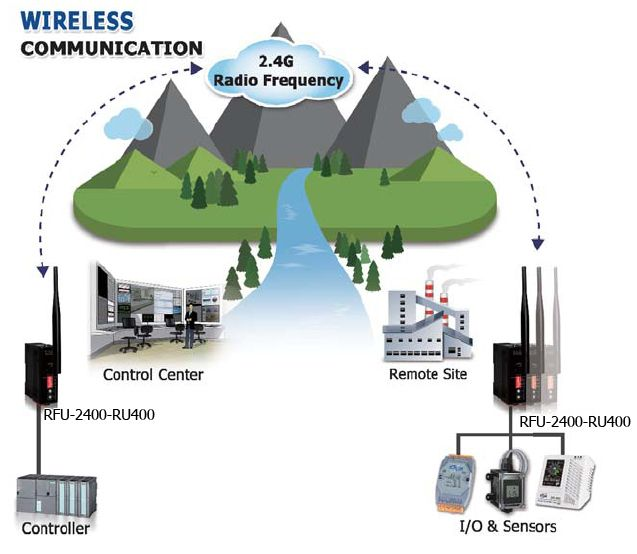

Application

Specification

LED Indicators
Status 1 x RF_Tx
1 x RF_Rx
1 x PWR



RF
Antenna 2.4G - 5 dBi Omnidirectional Ante
Channels 16
Modulation OQPSK (Offset Quadrature Phase-shift Keying)
Receive Sensitivity -96 dBm
Spread Spectrum DSSS (Direct-Sequence Spread Spectrum)
Transmission Power 11 dBm (Default)
19 dBm (Max.)
Transmission Range 400 m (Max.)



COM Ports
Ports 1 x RS-232(TxD, RxD and GND)
1 x RS-485(DATA+, DATA-; Internal ASIC Self-tuner; Non-isolated)
Baud Rate Full-duplex: 2400 to 57600 bps
Half-duplex: 2400 to 115200 bps
Data Format N81, O81, E81, N82
Receive Buffer 2560 Bytes



Power
Consumption 1 W (Max.)



Mechanical
Casing Plastic
Dimensions (mm) 108 x 84 x 33 (W x L x H)( not include antenna )
Installation DIN-Rail



Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Data Sheet

Documents

Ordering information

RFU-2400-RU400     CR  2.4 GHz RF Wireless Modem with 1-port RS-232/RS-485 (RoHS) (For Russia Only)
