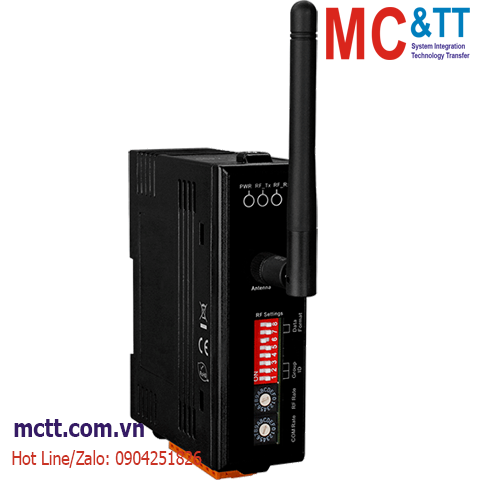

433 MHz RF Wireless Modem with 1-port RS-232/485

THÔNG TIN SẢN PHẨM

Feature

433 MHz Radio Frequency
16 RF Channels
8 RF Baud Rates
Includes a PA switch that can be used to enhance the RF power
Wireless line of sight (LOS) transmission range of up to 500 meters at an RF Baud Rate of 9600 bps
Transparent transmission mode
Provides Baud Rates from 1200 to 115200 bps for both the RS-232 and RS-485 interfaces
ESD Protection: Contact +/-4 kV
Isolation: 3000 VDC for DC-to-DC, 2500 Vrms using a photocoupler
DIN-Rail Mountable
Operating Temperatures, -25 °C ~ +75 °C

Introduction

The RFU-433 is an RS-232/485 to 433 MHz radio modem that can be used to convert data from an RS-232/485 device to an RF message that can then be transmitted in transparent mode via the 433 MHz ISM frequency band. The RFU-433 provides a maximum line of sight (LOS) transmission distance of 500 meters (0.5 km) at an RF Baud Rate of 9600 bps. In order to overcome the interference that may be encountered in harsh environments, the RFU-433 allows the RF transmission Baud Rate to be configured to a minimum of 650 bps, enhancing the capability of the modem to resist noise and other interference. Additionally, the RF channels and Group IDs are adjustable, which is helpful when attempting to avoid interference encountered when two RFU-433 networks are adjacent. The 16 RF channels and 8 Group IDs can be configured in order to distinguish and control the different RFU-433 networks. The majority of these configuration parameters can be adjusted using a combination of the Rotary and DIP switches, thereby providing a simple method of maintaining the system if the RFU-433 modem needs to be replaced.

Application

Specifications

Isolation
Intra-module Isolation	2500 Vrms for photocoupler (RS-485/RS-232 side)

EMS Protection
EFT (IEC 61000-4-4)	+/- 1 kV
ESD (IEC 61000-4-2)	+/- 4 kV Contact
Surge (IEC 61000-4-5)	+/- 1 kV

LED Indicators
Status	1 x RF_Tx 1 x RF_Rx 1 x PWR

RF
Antenna	0 dBi Omni directional
Baud Rate	57600 bps ~ 650 bps
Configuration	Rotary and DIP switch
Group ID	0 ~ 7
Protocol	Transparent transmit
Radio Frequency	433.1000 ~ 434.6000 MHz
Temporary Buffer Size	512 Bytes
Transmission Power	Default 10 dBm, Max 19 dBm
Transmission Distance (LoS)	500 m (at 9600 bps RF Rate and 10 dBm Tx Power)

COM Ports
Ports	1 x RS-232 (TxD, RxD and GND) 1 x RS-485 (D+, D- ; 3000 VDC for DC-to-DC)
Baud Rate	1200 ~ 115200
Data Format	N81, E81, O81

Power
Consumption	1 W (Max.)

Mechanical
Casing	Fire Retardant Materials
Dimensions (mm)	108 x 84 x 33 (W x L x H)( not include antenna )
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

RFU-433 CR

433 MHz RF Wireless Modem with 1-port RS-232/485 (RoHS)
