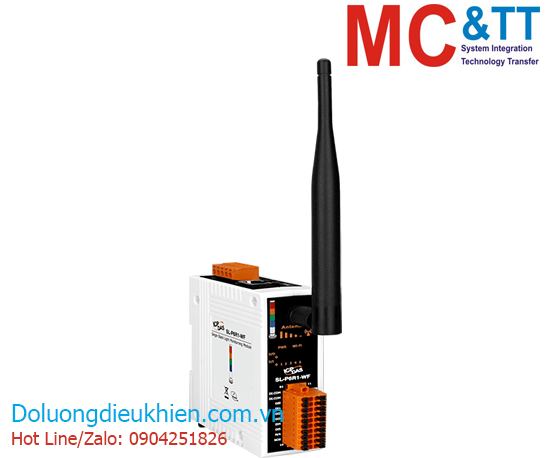

Module giám sát và điều khiển đèn tháp cảnh báo Modbus RTU/TCP + MQTT + Wi-Fi + 6 kênh DI + 1 kênh đầu ra Relay ICP DAS SL-P6R1-WF CR
Features
- Able to detect the status of each color segment: ON, OFF, or Flashing
- 6 channel DC digital input and 1 channel alarm relay output
- Compatible with IEEE802.11b/g/n standards
- Support infrastructure and limit-AP modes for wireless networks
- Status monitoring for user-defi ned combinations of multiple color segments
- Reports the duration of the previous status
- Supports Modbus RTU, Modbus TCP and MQTT protocols
- Includes RS-485/Ethernet communication interfaces
- Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
- Web-based confi guration interface and fi rmware update via Ethernet
- Relay output for alarm devices
- Wide operating temperature range: -25 to +75°C
Introduction
The main purpose of managing machine status is to reduce the amount of downtime and to reduce production costs. The easiest way to achieve this is by installing an SL-P6R1-WF intelligent module from ICPDAS, which monitors the output of the machine's indicators without affecting the operation of the equipment, thereby enabling the current operation stage of the machine to be mastered and ensuring timely command of the logistics system support in order to achieve production goals. The SL-P6R1-WF is a stack light monitoring module with Wi-Fi, Ethernet, and RS-485 interfaces. It includes 6-channel DC digital input and 1-channel relay output that can be used to monitor the status of the stack light of the MES (Manufacturing Execution System) machine. The module can be used to detect the status of each color segment of the stack light as being either OFF, ON, or fl ashing. In addition to detecting the status of each individual color segment, the status of the combination of multiple color segments can also be defi ned, including the ability to report the duration of the previous status. The SL-P6R1-WF has WLAN connection which complies with the IEEE802.11b/g/n standards. With the popularity of 802.11 network infrastructure, the SL-P6R1-WF makes an easy way to incorporate wireless connectivity into monitoring and control systems. By integrating the SL-P6R1-WF module into your system, it is easy to implement stack light status monitoring on an MES via SCADA software to improve machine utilization and throughput. The SL-P6R1-WF also supports Modbus/TCP and UDP protocols and the network encryption confi guration that offer easy and safe access for users from any time and anywhere.
Specifications
| CPU Module |
| Watchdog Timer |
Yes, Module (2.3 seconds), Communication (Programmable) |
| System |
| Security |
IP filter (whitelist) and Password (web) |
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±2 kV for Power |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
S1: System indicator
E1: PoE indicator (Green)
Link/Act (Yellow)
Antenna: Signal Strength |
| Software |
| Built-in Web Server |
Yes |
| Digital Input |
| Able to detect the status of each color segment: ON, OFF, or Flashing |
Yes |
| Wi-Fi |
| Transmission Range |
50 meters (LOS) |
| Standard Supported |
IEEE 802.11 b/g/n |
| Receive Sensitivity |
-83 dBm @ 11 Mbps |
| Output Power |
8 dBm @ 11 Mbps |
| Mode |
Infrastructure & Limit-AP |
| Encryption |
WEP, WPA and WPA2 |
| Antenna |
5 dBi (Omni-Directional) |
| Digital Input |
| Channels |
6 |
| Type |
Wet Contact (Sink, Source) |
| Wet Contact, ON Voltage Level |
+10 VDC ~ 50 VDC |
| Wet Contact, OFF Voltage Level |
+4 V Max. |
| Isolation |
3750 VDC |
| Input Impedance |
10 KΩ, 0.5 W |
| Overvoltage Protection |
70 VDC |
| Max. Stack Light Flashing Speed |
3 kHz |
| Report Duration of Previous Status |
Yes, 10 ~ 65500 ms |
| Status monitoring for user-defined combinations of multiple color segments |
Max. 81 combinations |
| Relay Output |
| Channels |
1 |
| Type |
Power Relay, Form A (SPST N.O.) |
| Contact Rating |
5 A @ 250 VAC or 5 A @ 30 VDC |
| Operate Time |
6 ms |
| Release Time |
3 ms |
| Electrical Endurance |
VDE:
5 A @ 250 VAC 30,000 ops (10 ops/minute) at 75°C
5 A @ 30 VDC 70,000 ops (10 ops/minute) at 75°C
UL:
5 A @ 250 VAC/30 VDC 6,000 ops
3 A @ 250 VAC/30 VDC 100,000 ops |
| Mechanical Endurance |
20,000,000 ops at no load (300 ops/minute) |
| Power on Value |
Yes, Programmable |
| Safe Value |
Yes, Programmable |
| COM Ports |
| Baud Rate |
1200 ~ 115200 bps |
| Protocol |
Modbus/RTU(RS-485), Modbus TCP(Ethernet, Wi-Fi) and MQTT(Ethernet) |
| Ethernet |
| Ports |
10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicators) |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
Terminal Block: +10 ~ +48 VDC
PoE: IEEE 802.3af, Class 1 |
| Consumption |
PoE: 1.2 W Max.
Non-PoE: 1 W Max. |
| Mechanical |
| Dimensions (mm) |
33 x 108 x 127 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Data sheet
Documents
Ordering infromation
| SL-P6R1-WF CR |
Single Stack Light (DC-type) Monitoring Module with RS-485/Ethernet PoE/Wi-Fi interfaces (6x DC DI + 1x Relay) (RoHS) (Asia Only) |
