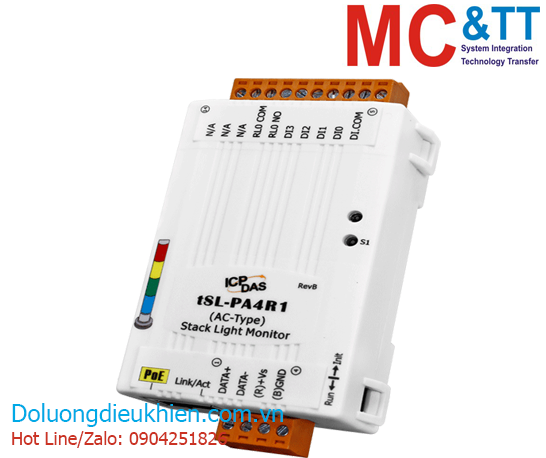

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule giám sát và điều khiển đèn tháp cảnh báo Modbus RTU/TCP + MQTT + 4 kênh DI + 1 kênh đầu ra Relay ICP DAS tSL-PA4R1 CR
Features
Introduction
The main purpose of managing machine status is to reduce the amount of downtime and to reduce production costs. The easiest way to achieve this is by installing a tSL-PA4R1 intelligent module from ICPDAS, which monitors the output of the machine’s indicators without affecting the operation of the equipment, thereby enabling the current operation stage of the machine to be mastered and ensuring timely command of the logistics system support in order to achieve production goals.
The tSL-PA4R1 is a stack light monitoring module which includes 4-channel AC digital input and 1-channel relay output that can be used to monitor the status of the stack light of the MES (Manufacturing Execution System) machine. The module can be used to detect the status of each color segment of the stack light as being either OFF, ON, or flashing. In addition to detecting the status of each individual color segment, the status of the combination of multiple color segments can also be defined, including the ability to report the duration of the previous status. By integrating the tSL-PA4R1 module into your system, it is easy to implement stack light status monitoring on an MES via SCADA software to improve machine utilization and throughput.
Specifications
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (2.3 seconds), Communication (Programmable) |
| System | |
|---|---|
| Security | IP filter (whitelist) and Password (web) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±2 kV for Power |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | S1: System indicator E1: PoE indicator (Green) Link/Act (Yellow) |
| Software | |
|---|---|
| Built-in Web Server | Yes |
| Digital Input | |
|---|---|
| Able to detect the status of each color segment: ON, OFF, or Flashing | Yes |
| Digital Input | |
|---|---|
| Channels | 4 |
| Type | Wet Contact (Sink, Source) |
| Wet Contact, ON Voltage Level | 80 VAC ~240 VAC |
| Wet Contact, OFF Voltage Level | 30 VAC Max. |
| Isolation | 3750 VDC |
| Input Impedance | 150 KΩ, 2 W |
| Overvoltage Protection | 300 VAC |
| Max. Stack Light Flashing Speed | 60 Hz |
| Programmable Digital Filter | 0 ~ 6500 ms |
| Report Duration of Previous Status | Yes, 10 ~ 65500 ms |
| Status monitoring for user-defined combinations of multiple color segments | Max. 81 combinations |
| Relay Output | |
|---|---|
| Channels | 1 |
| Type | Power Relay, Form A (SPST N.O.) |
| Contact Rating | 5 A @ 250 VAC or 5 A @ 30 VDC |
| Operate Time | 6 ms |
| Release Time | 3 ms |
| Electrical Endurance | VDE: 5 A @ 250 VAC 30,000 ops (10 ops/minute) at 75°C 5 A @ 30 VDC 70,000 ops (10 ops/minute) at 75°C UL: 5 A @ 250 VAC/30 VDC 6,000 ops 3 A @ 250 VAC/30 VDC 100,000 ops |
| Mechanical Endurance | 20,000,000 ops at no load (300 ops/minute) |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| COM Ports | |
|---|---|
| Baud Rate | 1200 ~ 115200 bps |
| Protocol | Modbus/RTU, Modbus TCP and MQTT |
| Ethernet | |
|---|---|
| Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicators) |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | Terminal Block: +10 ~ +48 VDC PoE: IEEE 802.3af, Class 1 |
| Consumption | PoE: 1 W Max. Non-PoE: 0.9 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 52 x 98 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering infromation
| tSL-PA4R1 CR | Single Stack Light (AC-type) Monitoring Module with RS-485/Ethernet PoE interfaces (4x AC DI + 1x Relay) (RoHS) |
