Single Stack Light (AC-type) Monitoring Module (Asia Only)

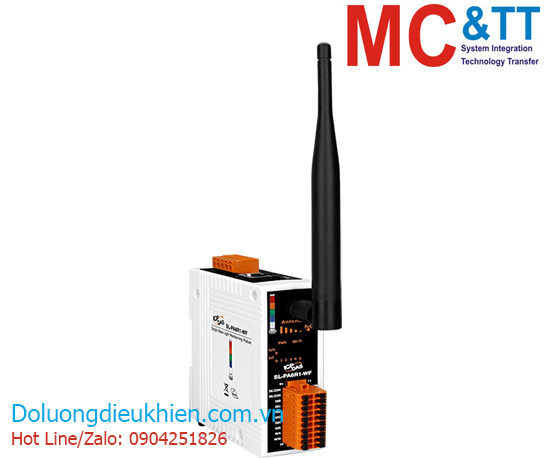

Module giám sát trạng thái đèn tháp cảnh báo ICP DAS SL-PA6R1-WF CR
Feature
Introduction
The main purpose of managing machine status is to reduce the amount of downtime and to reduce production costs. The easiest way to achieve this is by installing an SL-PA6R1-WF intelligent module from ICPDAS, which monitors the output of the machine's indicators without affecting the operation of the equipment, thereby enabling the current operation stage of the machine to be mastered and ensuring timely command of the logistics system support in order to achieve production goals. TheSL-PA6R1-WF is a stack light monitoring module with Wi-Fi, Ethernet, and RS-485 interfaces. It includes 6-channel AC digital input and 1-channel relay output that can be used to monitor the status of the stack light of the MES (Manufacturing Execution System) machine.
The module can be used to detect the status of each color segment of the stack light as being either OFF, ON, or fl ashing. In addition to detecting the status of each individual color segment, the status of the combination of multiple color segments can also be defi ned, including the ability to report the duration of the previous status. The SL-PA6R1-WF has WLAN connection which complies with the IEEE802.11b/g/n standards. With the popularity of 802.11 network infrastructure, the SL-P6R1-WF makes an easy way to incorporate wireless connectivity into monitoring and control systems. By integrating the SL-PA6R1-WF module into your system, it is easy to implement stack light status monitoring on an MES via SCADA software to improve machine utilization and throughput. The SL-PA6R1- WF also supports Modbus/TCP and UDP protocols and the network encryption confi guration that offer easy and safe access for users from any time and anywhere.
Application
Click to view the https://mctt.vn/stack-light-monitor-icp-das.
Specifications
Software | |
---|---|
Built-in Web Server | Yes |
CPU Module | |
---|---|
Watchdog Timer | Yes, Module (2.3 seconds), Communication (Programmable) |
System | |
---|---|
Security | IP filter (whitelist) and Password (web) |
Isolation | |
---|---|
Intra-module Isolation | 3750 VDC |
EMS Protection | |
---|---|
EFT (IEC 61000-4-4) | ±2 kV for Power |
ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
LED Indicators | |
---|---|
Status | S1: System indicator E1: PoE indicator (Green) Link/Act (Yellow) Antenna: Signal Strength |
Digital Input | |
---|---|
Able to detect the status of each color segment: ON, OFF, or Flashing | Yes |
Wi-Fi | |
---|---|
Transmission Distance (LoS) | 50 meters (LOS) |
Standard Supported | IEEE 802.11 b/g/n |
RX Sensitivity | -83 dBm @ 11 Mbps |
Output Power | 8 dBm @ 11 Mbps |
Mode | Infrastructure & Limit-AP |
Encryption | WEP, WPA and WPA2 |
Antenna | 5 dBi (Omni-Directional) |
Digital Input | |
---|---|
Channels | 6 |
Type | Wet Contact |
Sink/Source (NPN/PNP) | Sink/Source |
ON Voltage Level | 80 VAC ~240 VAC |
OFF Voltage Level | 30 VAC Max. |
Isolation | 3750 VDC |
Input Impedance | 150 KΩ, 2 W |
Overvoltage Protection | 300 VAC |
Max. Stack Light Flashing Speed | 60 Hz |
Report Duration of Previous Status | Yes, 10 ~ 65500 ms |
Status monitoring for user-defined combinations of multiple color segments | Max. 81 combinations |
Relay Output | |
---|---|
Channels | 1 |
Type | Power Relay, Form A (SPST N.O.) |
Contact Rating | 5 A @ 250 VAC or 5 A @ 30 VDC |
Operate Time | 6 ms |
Release Time | 3 ms |
Electrical Endurance | VDE: 5 A @ 250 VAC 30,000 ops (10 ops/minute) at 75°C 5 A @ 30 VDC 70,000 ops (10 ops/minute) at 75°C UL: 5 A @ 250 VAC/30 VDC 6,000 ops 3 A @ 250 VAC/30 VDC 100,000 ops |
Mechanical Endurance | 20,000,000 ops at no load (300 ops/minute) |
Power on Value | Yes, Programmable |
Safe Value | Yes, Programmable |
COM Ports | |
---|---|
Baud Rate | 1200 ~ 115200 bps |
Protocol | Modbus/RTU(RS-485), Modbus TCP(Ethernet, Wi-Fi) and MQTT(Ethernet) |
Ethernet | |
---|---|
Ports | 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicators) |
Power | |
---|---|
Reverse Polarity Protection | Yes |
Input Range | Terminal Block: +10 ~ +48 VDC PoE: IEEE 802.3af, Class 1 |
Consumption | PoE: 1.2 W Max. Non-PoE: 1 W Max. |
Mechanical | |
---|---|
Dimensions (mm) | 33 x 108 x 127 (W x L x H) |
Installation | DIN-Rail Mounting |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -30 ~ +80°C |
Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering Information
SL-PA6R1-WF CR | Single Stack Light (AC-type) Monitoring Module with RS-485/Ethernet PoE/Wi-Fi interfaces (6x AC DI + 1x Relay) (RoHS) (Asia Only) |
