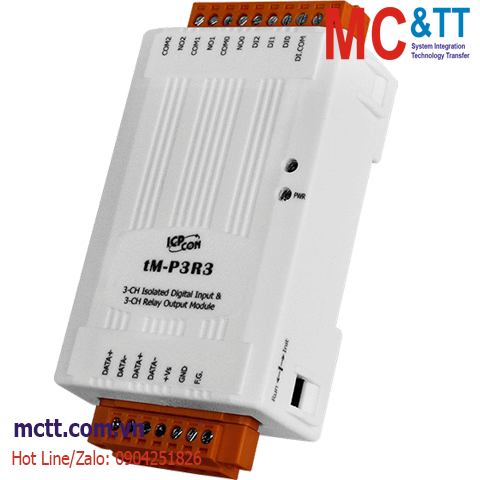

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule RS-485 Modbus RTU 3 kênh DI + 3 kênh Relay ICP DAS tM-P3R3 CR
Features
• Relay Outputs
• Wet Contact Source- or Sink-type Digital Inputs
• Photocoupler Isolation
• All Channels Can Be Used As 16-bit Counters
• Dual Watchdog
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Cost-effective
• Wide Operating Temperature Range: -25 ~ +75°C
Introduction
The tM-P3R3/tM-PD3R3 provides 3 channels for digital input and 3 channels for relay output, each of which features photocoupler isolation. All output channels are form A type relays, while input is based on sink- or souce-type using a wire connecion. All input channels can be used as 16-bit counters. There are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
Specification
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (2.3 seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| Digital Input/Counter | |
|---|---|
| Channels | 3 |
| Type | Wet Contact, Sink/Source |
| Wet Contact, ON Voltage Level | +3.5 VDC ~ +50 VDC |
| Wet Contact, OFF Voltage Level | +1 VDC Max. |
| Max. Counts | 65535 (16-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 10 kΩ, 0.5 W |
| Overvoltage Protection | 70 VDC |
| Relay Output | |
|---|---|
| Channels | 3 |
| Type | Power Relay, Form A (SPST N.O.) |
| Operate Time | 6 ms |
| Release Time | 3 ms |
| Electrical Endurance | VDE: 5 A @250 VAC 30,000 ops (10 ops/minute) at 75°C 5 A @30 VDC 70,000 ops (10 ops/minute) at 75°C UL: 5 A @250 VAC/30 VDC 6,000 ops 3 A @250 VAC/30 VDC 100,000 ops 5 A @30 VDC 70,000 ops (10 ops/minute) at 75°C |
| Mechanical Endurance | 20,000,000 ops at no load (300 ops/minute) |
| Surge Strength | 250 VAC or 30 VDC |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1) |
| Protocol | DCON, Modbus/RTU, Modbus/ASCII |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 0.8 W Max. |
| Powered from Terminal Block | Yes, 10 ~ 30 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 52 x 98 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environmental | |
|---|---|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering information
| tM-P3R3 CR | 3-channel Isolation DI (Wet) and 3-channel Power Relay Module (RoHS) |
