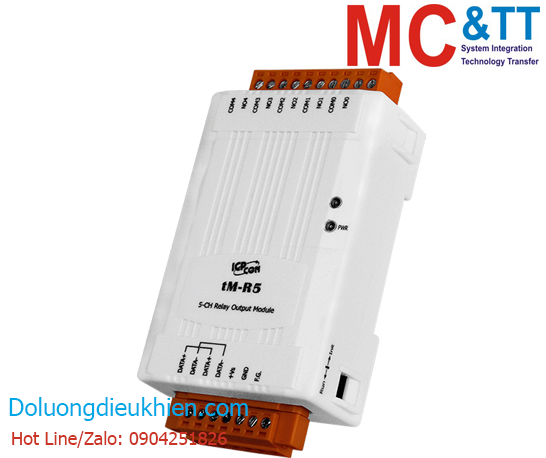

Module RS-485 DCON & Modbus 5 kênh đầu ra Relay ICP DAS tM-R5 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

5-channel Power Relay Module

THÔNG TIN SẢN PHẨM

Tính năng

Relay Outputs
Configurable Power-on Value and Safe Value Settings
Cost-effective
Dual Watchdog

Giới thiệu

The tM-R5 provides 5 channels for relay output. All output channels are Form A type relays and there are options for configuring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided.

Ứng dụng

• All Types of On/Off Control
• Industrial Automation
• Industrial Machinery
• Building Automation
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems

Thông số kỹ thuật

CPU Module
Watchdog Timer	Yes, Module (2.3 seconds), Communication (Programmable)

Isolation
Intra-module Isolation	3750 VDC

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal ±8 kV Air for Random Point

LED Indicators
Status	1 x Power and Communication

Relay Output
Channels	5
Type	Power Relay, Form A (SPST N.O.)
Operate Time	6 ms
Release Time	3 ms
Electrical Endurance	VDE: 5 A @250 VAC 30,000 ops (10 ops/minute) at 75°C 5 A @30 VDC 70,000 ops (10 ops/minute) at 75°C UL: 5 A @250 VAC/30 VDC 6,000 ops 3 A @250 VAC/30 VDC 100,000 ops 5 A @30 VDC 70,000 ops (10 ops/minute) at 75°C
Mechanical Endurance	20,000,000 ops at no load (300 ops/minute)
Surge Strength	250 VAC or 30 VDC
Power on Value	Yes, Programmable
Safe Value	Yes, Programmable

COM Ports
Ports	1 x RS-485
Baud Rate	1200 ~ 115200 bps
Data Format	(N, 8, 1), (N, 8, 2), (O, 8, 1), (E, 8, 1)
Protocol	DCON, Modbus/RTU, Modbus/ASCII

Power
Reverse Polarity Protection	Yes
Consumption	1.0 W Max.
Powered from Terminal Block	Yes, 10 ~ 30 VDC

Mechanical
Dimensions (mm)	52 x 98 x 27 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 °C ~ +75 °C
Storage Temperature	-30 °C ~ +75 °C
Humidity	10 ~ 95% RH, Non-condensing

Download

Data sheet

Documents

Thông tin mua hàng

tM-R5 CR

5-channel Power Relay Module (RoHS)
