DeviceNet Slave Module of 8-channel thermocouple input

THÔNG TIN SẢN PHẨM

Features

DeviceNet general I/O slave devices
Comply with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5
Group 2 Only Server (non UCMM-capable)
Support Predefined Master/Slave Connection Set
Connection supported:
- 1 connection for Explicit Messaging
- 1 connection for Polled I/O
- 1 connection for Bit-Strobe I/O connection
Support DeviceNet heartbeat and shutdown messages
Provide EDS file for DeviceNet master interface

Introduction

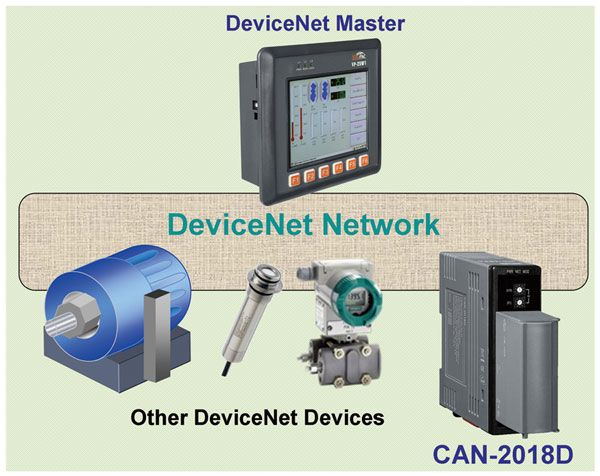

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2018D follows DeviceNet specification Volume I/II, Release 2.0. User can access the thermocouple input status and set the configuration via DeviceNet EDS file. CAN-2018D has 8-channel thermocouple input and it can be used to various applications. By the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. For more information about the DeviceNet master interfaces and other DeviceNet products, please refer to the following web site.

Application

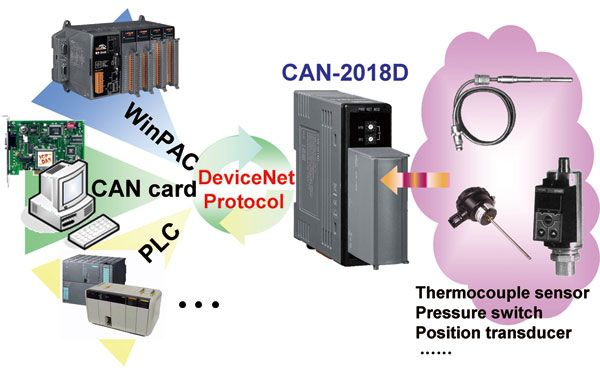

We have communicated with the following DeviceNet masters or gateways.

Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
OMRON CJ1W-DRM21
OMRON CS1W-DRM21-V1
OMRON C200HW-DRM21-V1
OMRON 3G8F7-DRM21-E

Specification

LED Indicators
Status	1 x Power 2 x DeviceNet status

Analog Input
Channels	8
Sensor Type	+/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V +/-20mA,(Requires Optional External 125 Ohm Resistor) Thermocouple (J, K, T, E, R, S, B, N, C)
Resolution	16-bit
Accuracy	+/-0.1% FSR
Sampling Rate	10 Samples/Sec. (Total)
Input Impedance	>400 kΩ
Common Mode Rejection	86 dB
Normal Mode Rejection	100 dB
Overvoltage Protection	240 Vrms
Individual Channel Configuration	Yes
Zero Drift	+/- 10 μV/ °C
Span Drift	+/- 25 ppm/ °C
Intra-module Isolation	3000 VDC
Open Thermocouple Detection	Yes

DeviceNet
Ports	1
Connection Supported	1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O
Baud Rate	125 kbps, 250 kbps, 500 kbps
Terminal Resistor	Switch for 120 Ω terminal resistor
Specification	Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
Node ID	0 ~ 63
Shutdown Message	Yes
Heartbeat Message	Yes
Subscribe	Group 2 Only Server

Power
Input Range	+10 VDC ~ +30 VDC
Consumption	1.5 W

Mechanical
Dimensions (mm)	33 x 99 x 78 (W x L x H)
Installation	DIN-Rail

Environmental
Operating Temperature	-25 ~ +75 ℃
Storage Temperature	-30 ~ +80 ℃
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

CAN-2018D/S CR

DeviceNet Slave Module of 8-channel Thermocouple Input.
Include CAN-2018D module and a CN-1824 daughter board. (RoHS)
