Module DeviceNet Slave 16 kênh DI ICP DAS CAN-2053D CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

DeviceNet Slave Module of 16-channel Isolated (Wet) DI

Gọi +84 904251826 để được trợ giúp

Module DeviceNet Slave 16 kênh DI ICP DAS CAN-2053D CR

Features

  • DeviceNet general I/O slave devices
  • Group 2 Only Server (non UCMM-capable)
  • Support Predefined Master/Slave Connection Set
  • Connection supported:
    • 1 connection for Explicit Messaging
    • 1 connection for Polled I/O
    • 1 connection for Bit-Strobe I/O connection
  • Provide EDS file for DeviceNet master interface
  • Support Application: PNP, NPN, TTL, and Relay Contact
  • ESD Protection 4 kV Contact for each channel

Introduction

DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for the embedded network of the machine control, such as industrial machine control , aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc. The CAN-2053D follows DeviceNet specification Volume I/II, Release 2.0. User can access the digital output status and set the configuration via DeviceNet EDS file. CAN-2053D has 16-channel isolated sink/source input and it can be used to various applications, such as PNP, NPN, TTL, relay contact and so forth. By owing to the DeviceNet masters of ICP DAS, you can quickly build a DeviceNet network to approach your requirements. For more information about the DeviceNet master interfaces and other DeviceNet products, please refer to the following web site.

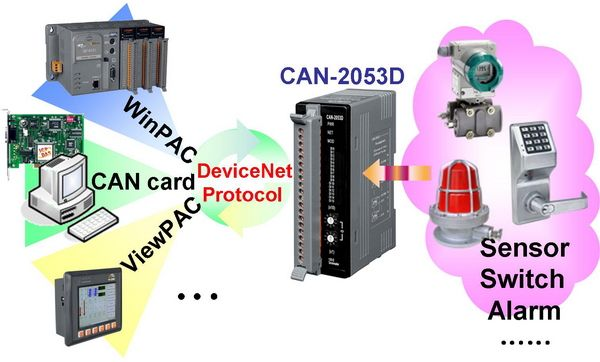

Application

We have communicated with the following DeviceNet masters or gateways.

  1. Allen-Bradley(AB) 193-DNENCAT, 193-DNENCATR
  2. OMRON CJ1W-DRM21
  3. OMRON CS1W-DRM21-V1
  4. OMRON C200HW-DRM21-V1
  5. OMRON 3G8F7-DRM21-E

Specification

LED Indicators
Status 1 x Power
2 x DeviceNet status



Digital Input
Channels 16 (Sink/Source)
Wet Contact, ON Voltage Level +3.5 ~ +30 VDC
Wet Contact, OFF Voltage Level +1 VDC Max.
Input Impedance 3 kΩ, 0.3 W



DeviceNet
Ports 1
Connection Supported 1 connection for Explicit Messaging
1 connection for Polled I/O
1 connection for Bit-Strobe I/O
Baud Rate 125 kbps, 250 kbps, 500 kbps
Terminal Resistor Switch for 120 Ω terminal resistor
Specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata5
Node ID 0 ~ 63
Shutdown Message Yes
Heartbeat Message Yes
Subscribe Group 2 Only Server



Power
Input Range +10 VDC ~ +30 VDC
Consumption 1.5 W



Mechanical
Dimensions (mm) 32.3 x 99 x 77.5 ( W x L x H )
Installation DIN-Rail



Environmental
Operating Temperature -25 ~ +75 ℃
Storage Temperature -30 ~ +80 ℃
Humidity 10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

CAN-2053D     CR  DeviceNet Slave Module of 16-channel Isolated Sink/Source Digital Input (RoHS)
