7" Xpanel Hybrid combines the Xpanel HMI + PLC-S CPU (Relay)

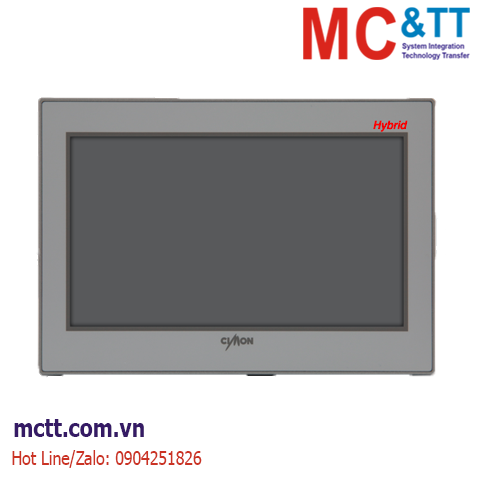

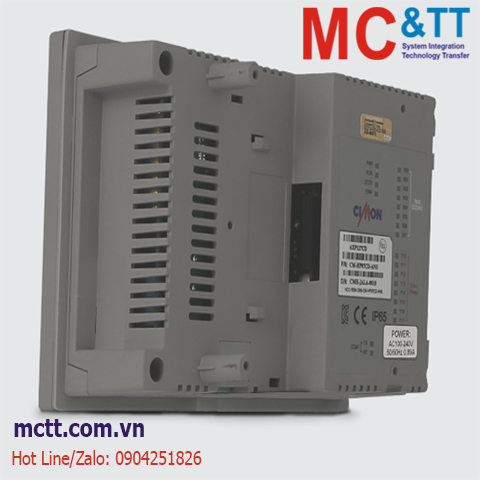

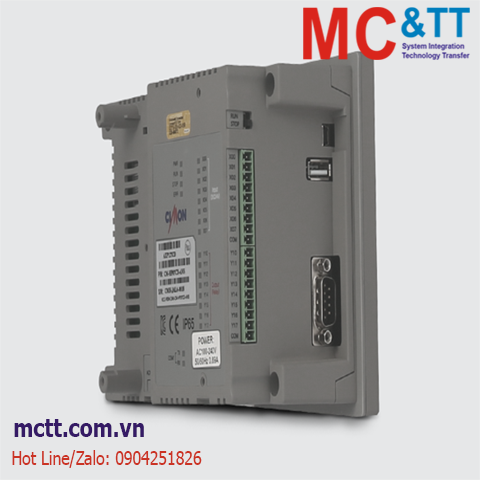

Màn hình cảm ứng HMI 7 inch tích hợp PLC HYBRID Xpanel Cimon CM-HP07CD-DER
Tính năng
Thông số kỹ thuật
HMI Part (Xpanel)
Model | HP07CD-AER | HP07CD-ANR | HP07CD-AES | HP07CD-ANS |
HP07CD-DER | HP07CD-DNR | HP07CD-DES | HP07CD-DNS | |
LCD Size | 7 inches | |||
LCD Type | TFT Color | |||
Color | 65,536 colors | |||
Resolution | WVGA 800×480 | |||
Backlight | LED | |||
Luminance | 400cd/m2 | |||
Touch Panel | Resistive 4 wire | |||
Memory | 128MByte DDR2 | |||
Storage Space | 128MByte SLC NAND Flash | |||
SD Card | 1 SD Slot | None | 1 SD slot | None |
COM1(HMI) | RS232C/RS422/RS485 | |||
COM2(HMI) | RS232C (Internal) | |||
COM1(PLC) | RS232C | RS485 | ||
COM2(PLC) | RS232C (Internal) | |||
Ethernet | 10/100 BaseT | None | 10/100 BaseT | None |
USB Host | 1 port | |||
Tool Port | 1 USB device | |||
Audio | 1 port | None | 1 port | None |
Voltage | -A: AC100-240V / -D: DC24V | |||
Power Consumption | 9.6W | |||
OS | Windows CE 6.0 | |||
Dimension(mm) | 185 x 127 x 80.5 | |||
Panel Cut(mm) | 177 x 119 |
Item | Specification | Remark | |
---|---|---|---|
Power | DC 12 – 24V | ||
Program control method | Cyclic Execution, Time Driven Interrupt | ||
I/O control method | Indirect method, Directed by program instruction | ||
Program language | LD(Ladder Diagram), IL(Instruction List), SFC(Sequential Function Chart) | ||
Data processing method | 32 Bit | ||
Instructions | Sequence | 55 Instruction | |
Application | 389 Instruction | ||
Processing speed (Sequence) | 300 ns/Step | ||
Program capacity | 10K Step | ||
Maximum I/O points | 96pts / Option module + 2 PLC-S modules | ||
Operation mode | Remote Run, Remote Stop | ||
Back-up method | K address by (Latch) parameter | ||
Total program | 128 | ||
Total program (Max.128) | Scan | Scan, Subroutine, Cold/Hot Start initialization, Periodic Interrupts | |
Periodic Interrupts | Maximum 15 scan program (Minimum period :10ms) | ||
Special | PID , HSC, IO Input Filter, Special Card init | ||
Communication | User Protocol(Serial) Comm. Program, MODBUS/RTU Master | ||
Etc. | SFC, FBD (Function Block Diagram) | ||
Self-diagnosis function | Detect delay of scan time, memory, I/O, Power Supply | ||
Restart | Cold, Hot Restart | ||
Maximum expansion | 1 CPU module + maximum 3 expansion modules | ||
Data memory | X | 1024 pts (X0000 – X063F) | Bit |
Y | 1024 pts (Y0000 – Y063F) | Bit | |
M | 8192 pts (M0000 – M511F) | Bit | |
L | 4096 pts (L0000 – L255F) | Bit | |
K | 4096 pts (K0000 – K255F) | Bit | |
F | 2048 pts (F0000 – F127F) | Bit | |
T | 512 pts (T0000 – T0511) | Word | |
C | 512 pts (C0000 – C0511) | Word | |
S | 100 states x 100 set (00.00 – 99.99) | ||
D | 10000 words (D0000 – D9999) | Word | |
Z | 1024 words (Call Stack : Z0000 – Z0063, Z1000 – Z1063) | Word | |
R | 16 points (Index) | ||
High Speed Counter | 16Kpps (In case of 2Ph. 2Multi. Max 4Kpps)/ 1Phase pulse Input + Direction signal | ||
PID | 32 Channels, Auto-Tuning | ||
RTC | Battery (CR2032 Backup) | ||
Comm. Channel | Standard : USB Loader, Serial 1(RS232C)/Optional : Serial 1Ch(RS485 or RS232) | ||
Etc. | Real number operation, Online edit |
Thông tin đặt hàng
Hybrid Xpanel Product Line-Up
No. | Model | Specification |
---|---|---|
1 | CM-HP07CD-DNR | 7″ XPANEL + PLC(CPU, RS232C), DC24V, Relay DI 8/DO 8, USB Loader |
2 | CM-HP07CD-ANR | 7″ XPANEL + PLC(CPU, RS232C), AC Free, Relay DI 8/DO 8, USB Loader |
3 | CM-HP07CD-DNS | 7″ XPANEL + PLC(CPU, RS485), DC24V, Relay DI 8/DO 8, USB Loader |
4 | CM-HP07CD-ANS | 7″ XPANEL + PLC(CPU, RS485), AC Free, Relay DI 8/DO 8, USB Loader |
5 | CM-HP07CD-DER | 7″ XPANEL + PLC(CPU, RS232C), DC24V, Relay DI 8/DO 8, USB Loader, Ethernet, SD card slot |
6 | CM-HP07CD-AER | 7″ XPANEL + PLC(CPU, RS232C), AC FREE, Relay DI 8/DO 8, USB Loader, Ethernet, SD card slot |
7 | CM-HP07CD-DES | 7″ XPANEL + PLC(CPU, RS485), DC24V, Relay DI 8/DO 8, USB Loader, Ethernet, SD card slot |
8 | CM-HP07CD-AES | 7″ XPANEL + PLC(CPU, RS485), AC FREE, Relay DI 8/DO 8, USB Loader, Ethernet, SD card slot |
Tùy chọn
Expansion Modules (PLC-S) | |||
---|---|---|---|
1 | CM-HP-DM | DUMMY | Expansion dummy for Hybrid XPANEL |
2 | CM-HP-EAA | AIO-4 | Analog module (AI 2ch, AO 2ch) for Hybrid XPANEL |
3 | CM-HP-EDR | DI8/DO6 | DI 8 pts [TR Sink/Source], DO 6 pts [relay]) |
Module tùy chọn
Digital I/O
No. | Model | Type | Specification |
---|---|---|---|
1 | CM3-SP32EDO | DI-32 | DI 32 pts, DC 24V |
2 | CM3-SP32EOT | DO-32 | DO 32 pts. DC 24V TR (Sink) |
3 | CM3-SP32EOC | DO-32 | DO 32 pts. DC 24V TR (Source) |
4 | CM3-SP16EOR | DO-16 | DO 16 pts, Relay Output |
5 | CM3-SP32EDT | DI-16 / DO-16 | DI 16 pts, DO 16 pts, TR (Sink) |
Analog I/O & Temp. Measuring
No. | Model | Type | Specification |
---|---|---|---|
1 | CM3-SP04EAO | AI-4 | AI 4CH Current/Voltage |
2 | CM3-SP04EAA | AIO-4 | AI 2CH / AO 2CH Current Voltage |
3 | CM3-SP04EOAI | AO-4 | AI 4CH RTD |
4 | CM3-SP04EOAI | AI 4CH TC | |
5 | CM3-SP04EOAI | AI 4CH TC & RTD MUX | |
6 | CM3-SP04EOAI | AO-4 | AO 4CH Current Output |
7 | CM3-SP04EOAV | AO 4CH Voltage Output |
Module truyền thông
No. | Model | Type | Specification |
---|---|---|---|
1 | CM3-SP02ERS | Comm. | RS232C 1CH, RS422/485 1CH, MODBUS RTU Master |
2 | CM3-SP02ERR | RS232C 2CH. MODBUS RTU Master | |
3 | CM3-SP01EET | 10/100Mbps, UDP/TCP, TCP MODBUS Master |
Phụ kiện
No. | Model | Type | Specification |
---|---|---|---|
1 | CM0-TB32M | SP32MDT | Multi-Terminal Block |
3 | CM0-SCB15E | SP32EDO, SP32EOT | I/O 32 Connection Cable (1.5m) |
