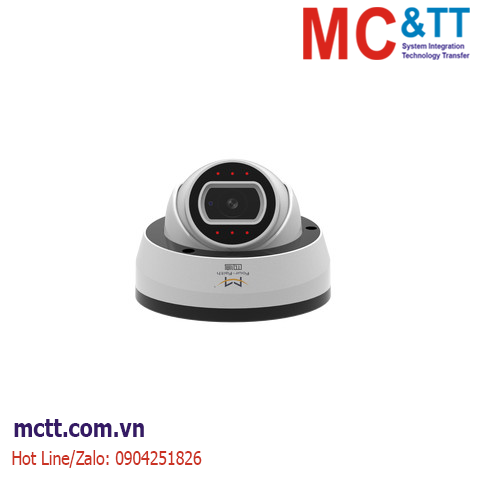

Miễn phí vận chuyển với đơn hàng từ 10.000.000đCamera IP giám sát Mini Dome 2 MP, Super WDR, IP67 Four-Faith F-SC621
F-SC621 is a turrent style mini dome camera. The fashion appearance fits most inddor scene. Provides 2MP sensor, fixed lens. It can be customized to add multiple IoT interfaces.
Four-Faith Speed Dome Camera can be integrated with most common IoT interface such as RS232, RS485, I/O, Relay, Analog Input and so on, provides an all-in-one IoT surveillance solution to save your resource at the same time improve the system integration.
Tính năng
Thông số kỹ thuật
| CAMERA | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Resolution | 2MP |
| Min. Illumination | Color: 0.002Lux@F1.2 B/W: 0Lux with IR on |
| WDR | Super WDR up to 140dB |
| Lens | Fixed Lens
2.8mm @F2.0 |
| Mount | M12 |
| Field of View | H123°/D142°/V68° (2.8mm), H108°/D126°/V59° (3.2mm), H90°/D105°/V48° (3.6mm) |
| Shutter Time | 1/100000s~1/5s |
| IR Distance | 50m |
| Day&Night | ICR Filter Auto Switch |
| Model | F-SC621-21 |
| VIDEO | |
| Max. Image Resolution | 1920×1080 |
| Primary Stream | 30fps@(1920×1080, 1280×960,1280×720, 704×576) |
| Secondary Stream | 30fps@(704×576, 640×480, 640×360, 352×288, 320×240, 320×192, 320×176 ) |
| Tertiary Stream | 30fps@(1920×1080, 1280×720, 704×576, 640×480, 640×360, 320×240, 320×192, 320×176 ) |
| Video Compression | H.265(HEVC)/H.264/MJPEG |
| Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| NETWORK | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Network Storage | NAS (Support NFS, SMB/CIFS) |
| Protocol | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DHCP, NTP, SNMP, NFS, CIFS |
| SYSTEM | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 128G |
| Advanced Function | Motion Detection, Privacy Masking, Backlight Compensation, HLC, 2D DNR, 3D DNR, ROI, Antifog, White Balance, EIS, IP Address Filtering |
| Event Trigger | Motion Detection, Network Disconnection, External Input, etc. |
| Event Action | FTP Upload/SMTP Upload/SD Card Record |
| Video Analysis (Optional) | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed (* In development) |
| System Compatibility | ONVIF Profile S GB/T28181-2016 Modbus RTU MQTT IEC101*, IEC104* (*In development) |
| DC-12V IN* | 1 | |||||||||
| Audio I/O@Audio Compression* | 1/1&G.711/AAC | |||||||||
| Alarm In* | 1 | |||||||||
| Alarm Out* | 1 (Port can Drive 12V or 5V Relay) | |||||||||
| Relay Out* | 1 | |||||||||
| Power Return Out* | 12V@500MA or 5V@1000MA | |||||||||
| ADC In* | 1@8bit | |||||||||
| UART Port* | TTL@115200bps or Expansion for RS485 | |||||||||
| Working Temperature | -40℃~60℃ | |||||||||
| Working Humidity | 0~90% (Non-condensing) | |||||||||
| Power Supply | PoE (802.3af) | |||||||||
| Power Consumption | 3W MAX 6W MAX (With IR on) |
|||||||||
| Weather Proof | Up to IP67-rated for Weather-resistant Performance | |||||||||
| Weight | 410g | |||||||||
| Dimensions | Φ110mmX76mm | |||||||||
Thông tin đặt hàng
| Models | Megapixel | Lens | Description |
| F-SC621-21 | 2MP | Fixed Lens 2.8mm | SD, DC&POE |
