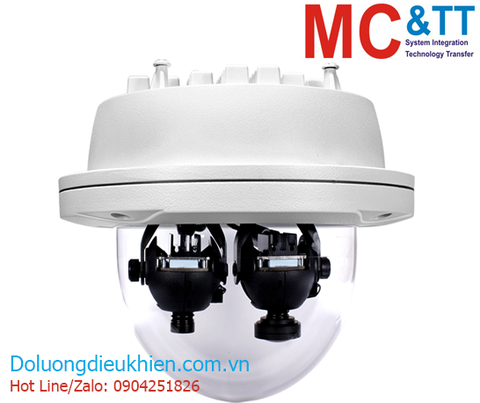

Camera IP IR Dual Lens 7.3MP + 360°/180° Panoramic View iCAM-760D CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Dual Lens Panoramic Dome Network Camera with 7.3MP and 360°/180° Panoramic View

THÔNG TIN SẢN PHẨM

Features

• 2 x 5 Megapixel Progressive CMOS Sensor
• Smooth 15 fps @ High 7.3 Megapixels Resolution (3840 x 1920)
• H.264/MJPEG Dual Codec
• 1.05 mm non-liner Fisheye Lens + 6/8/12/16 mm Fixedfocal Lens
• Removable IR Cut, Day & Night Function for Both Sensors
• eWDR Image Enhancement for Extreme Lighting Condition (too Bright/Dark)
• Various Display Modes Selectable for Different Applications
• ePTZ, Auto Pan, Auto Patrol Function on Fisheye Lens
• Two-way Audio
• Built-in MicroSD Card Slot, support SDHC/SDXC 64GB or above
• Weather-proof IP66-rated Outdoor Housing
• Built-in 802.3af Compliant PoE
• ONVIF 2.2 Compliant for interoperability

Introduction

Panorama and detail, iCAM-760D dual lens camera provides a professional single camera solution. Integrated with Dual 5-Megapixel sensors, one equipped with f 1.05 mm non-linear fisheye lens offers 180/360 degree dewarped image (single or multiple), for the other sensor, lens is 6, 8, 12, 16 mm optional. Dual sensors gimbals work independently and can be configured to almost any direction, and dewarping algorithms are 180/360 degree selectable depends on fisheye lens configuration. Wide Dynamic Range and IR cut removable are available for both sensors. iCAM-760D offers a professional and efficient solution for commercial, industrial, and public areas.

Specifications

Alarm and Event
Alarm Events	Digital output, Files uploaded via HTTP, SMTP, FTP and NAS server
Alarm Triggers	Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification

Camera
Aperture	· Fixed-Focal Lens Type: F1.6, Fixed-IRIS · Panoramic Lens Type: F2.8, Fixed-IRIS
Field of View	· Horizontal angle of view: 54°/41°/28°/22° · Angle of view: 186±4° (D/H/V)
Image Sensor	2 x 1/2.5”, CMOS
Lens	· Fixed-Focal Lens Type: f = 6/8/12/16 mm · Panoramic Lens Type: f = 1.05 mm
Max. Resolution	7.37 MEGA: 3840 x 1920 @ 15fps

Audio
Capability	Audio input/output (full duplex)

Network
Protocol	HTTP, HTTPS, TCP/IP, IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP, RTSP, RTP, UPnP, ONVIF (Profile S), Multicast
ONVIF	Ver. 2.2 and above

Video
Streams	2 simultaneous streams Stream 1: 3840 x 1920 @ 15fps Stream 2: 480 x 240 @ 15fps

Ethernet
Ports	1 x RJ-45, 10 Base-T/100 BaseTX Ethernet

Mechanical
Casing	Metal
Dimensions (mm)	200 x 153.5 mm
Ingress Protection Rating	· Indoor: IP54 · Outdoor: IP66 with optional 6" dome housing

Environmental
Operating Temperature	Starting: -10°C ~ 50°C Working: -40°C ~ 50°C
Humidity	10% ~ 80%

Download

Data sheet

Documents

Ordering infromation

iCAM-760D CR

Dual Lens Panoramic Dome Network Camera with 7.3MP and 360°/180° Panoramic View (RoHS)
