Camera IP giám sát an ninh ICP DAS iCAM-ZMR8422X CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

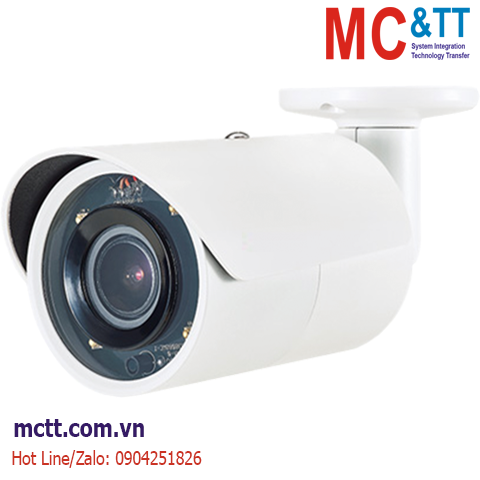

Auto Focus IR Bullet IP Camera, with 2MP and IP67

THÔNG TIN SẢN PHẨM

Feature

• Full HD 2 megapixel CMOS image sensor
  • 1080P True H.264 AVC High Profile video compression
  • H.264 and Motion JPEG multi-profile video streaming
  • Auto focus with zoom / focus motorized lens
  • Smart H.264 supported
  • 3D noise reduction (MCTF)
  • 2D WDR function
  • HDR function up to 100dB
  • Digital PTZ supported
  • IVS supported
  • Tampering / Motion detection alarm function
  • High-efficiency IR LED, radiant distance up to 30m
  • Day & Night (IR cut removable)
  • Cable managed housing and bracket
  • ONVIF Profile S supported
  • IP67 rain and dust resistant
  • Built-in 802.3af Compliant PoE

Introduction

iCAM-ZMR8422X is a 2MP auto-focused vandal resistant bullet IR IP camera designed into a range of environments such as retail, home, oﬃce, residential premises, and hotel security. It features a full HD 2.0 megapixel CMOS image sensor. The camera has built-in IR-cut ﬁlter which allows clearer images at day and night operations even in the low lux condition. The high eﬃciency IR LED radiant distance can extend up to 30m. Its auto focus feature allows users to automatically focus the camera from a distant location. With motorized lens, all you need to do with zoom/focus adjustments is simply a click on browsers. Supported with privacy mask, 3D noise reduction, 2D WDR function, and HDR function up to 100dB, it ensures to deliver a clear and detailed image to the users.

Application

Click to view the WISE Surveillance Solution With iCAM Camera.

Specifications

Alarm and Event
Alarm Events	Files uploaded via HTTP, SMTP, FTP
Alarm Triggers	Motion Detection, Tampering Detection, Advanced Motion Detection

Camera
Aperture	F1.6
Field of View	102° - 34°
Image Sensor	1/2.7”, CMOS
Lens	2.8 ~12 mm
Max. Resolution	1920 x 1080, 2MP

Video
Streams	4 configurable streams in H.264 and Motion JPEG, configurable frame rate and bandwidth

Ethernet
Ports	1 x RJ-45, 10/100 Mbps Base-T
PoE	Yes
Protocol	IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, MQTT, QoS, SNMP, SNMP Trap, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profi le S, SDDP, Bonjour, 802.1x, SSL/TLS
ONVIF	Profile S

Power
Consumption	DC12V, 7.5W PoE, 8.6W
Powered from PoE	Yes

Mechanical
Casing	Metal
Dimensions (mm)	68(W) × 69(H) × 214(D)
Ingress Protection Rating	IP67

Environment
Operating Temperature	Starting: -10°C – +50°C (14°F – 122°F) Operating: -40°C – +50°C (-40°F – 122°F) Storage : -25°C – +60°C (-13°F – 140°F)
Humidity	10% ~ 90%

Download

Datasheet

Documents

Ordering Information

iCAM-ZMR8422X CR

Auto Focus IR Bullet IP Camera, with 2MP and IP67 Resistant (RoHS)
