F2414 WCDMA (3G) IP Modem

F2414 WCDMA (3G) IP Modem

F2414 WCDMA (3G) IP Modem is a kind of cellular terminal device that provides data transfer function by public WCDMA/HSDPA/HSUPA network. F2414 WCDMA IP Modem adopts high-powered industrial 32 bits CPU and embedded real time operating system. It supports RS232 and RS485 (or RS422) port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial devices with only basic configuration. F2414 has low power consumption states in which the power consumption could be 1ower than 1mA@12VDC. It has compatible digital I/O channel, ADC, input pulse counter and pulse wave output function.

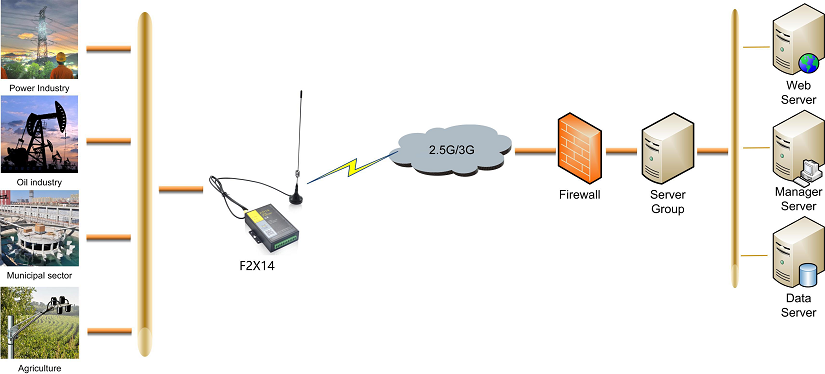

F2414 Modem has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.

Features and Benefits

Design for Industrial Application
1   High-powered industrial cellular module
2   High-powered industrial 32 bits CPU
3   Support low power consumption mode, including multi-sleep and trigger modes to reduce the power dissipation farthest
4   Embedded Real Time Clock(RTC) circuit which can realize timing online/offline function
5   Housing: iron, providing IP30 protection.
6   Power range: DC 5~35V

Stability and Reliability
1   Support hardware and software WDT
2   Support auto recovery mechanism, including online detect, auto redial when offline to make it always online
3   RS232/RS485/RS422 port: 15KV ESD protection
4   SIM/UIM port: 15KV ESD protection
5   Power port: reverse-voltage and overvoltage protection
6   Antenna port: lightning protection(optional)

Standard and Convenience
1   Adopt terminal block interface, convenient for industrial application
2   Support standard RS232 and RS485(or RS422) port that can connect to serial devices directly
3   TTL logic level RS232 interface can be customized
4   Support intellectual mode, enter into communication state automatically when powered
5   Provide management software for remote management
6   Support several work modes
7   Convenient configuration and maintenance interface

High-performance
1   Support TCP server and support multi TCP client connection(optional)
2   Support double data centers, one main and another backup
3   Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters.
4   Support multi data centers and it can support 5 data centers at the same time
5   Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
6   Support dynamic domain name(DDNS) and IP access to data center
7   Design with standard TCP/IP protocol stack
8   Support APN/VPDN

Download

Specification

F2414 WCDMA IP MODEM SPECIFICATION

Use Manual

F2X14 Series IP MODEM USER MANUAL

Software

IP Modem Firmware Upgrade Tool

IP Modem Configure Tool F2X14
