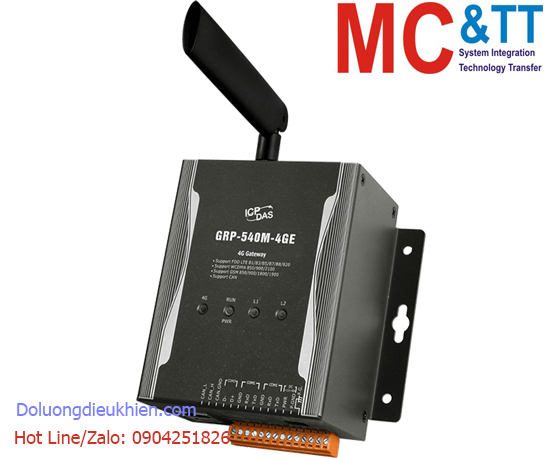

Modem LTE (4G) + GPS + Ethernet + RS-232/48 + CAN Gateway ICP DAS GRP-540M-4GE CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Ethernet/Serial/CAN to 4G Gateway. (RoHS)

THÔNG TIN SẢN PHẨM

Features

Support 4G FDD LTE.
Support 3G WCDMA.
Support 2G GSM.
10/100 Base-TX compatible Ethernet controller.
Support CAN.
GPS : 32 channels with All-In-View tracking.
Support Micro SD card.
Provide 4G Router function.
Provide port mapping function.
Serial Port to 4G Gateway Function.
High reliability in harsh environments.
DIN-Rail mountable.

Introduction

The GRP-540M provided by ICP DAS is a 4G gateway for Ethernet, serial port, and CAN. With GPS function, the GRP-540M can also be a GPS tracking system. It can be used in M2M application fields to transfer the remote I/O, Modbus data or video of the camera via 4G/3G/2G. Within the high performance CPU, the GRP-540M-4GE can handle a large of data and are suit for the Harsh Industrial environment. The GRP-540M have 4G module, Ethernet interface and GPS module.

Specification

CPU Module
CPU	ARM CPU
EEPROM	16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)
Storage Expansion	SD Card (Max. 32GB SDHC)
Watchdog Timer	Yes

LED Indicators
Status	1 x RUN/PWR 1 x 4G 1 x L1 1 x L2

2G System
Coding Schemes	CS 1, CS 2,CS 3,CS 4
Data GPRS	GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps
Frequency Band	850/900/1800/1900 MHz
GPRS Multi-slot	GPRS class 12; GPRS station class B
Power Class	Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz)

3G System
Data Transmission	DC-HSPA+ Downlink transfer: Max. 42 Mbps; Uplink transfer: Max. 5.76 Mbps TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps
Frequency Band	WCDMA 850/900/2100 MHz
Power Class	Class 3 (250mW @ WCDMA/HSPA)

4G System
Data Transmission	LTE Downlink transfer: Max. 100 Mbps; Uplink transfer: Max. 50 Mbps
Frequency Band	FDD LTE: B1/B3/B5/B7/B8/B20

GPS
Protocol	NMEA 0183
Support Channels	32

COM Ports
Ports	1 x RS-232 (Console, Debug) 1 x RS-232 1 x RS-485 (3000VDC Isolated)

Ethernet
Ports	1 x RJ-45, 10/100Base-T(X)

CAN
Signal Line	CAN Bus (CAN_H, CAN_L)

Power
Consumption	4.8W ( 200 mA @ 24 VDC)

Mechanical
Casing	Metal
Dimensions (mm)	117 x 126 x 58 (W x L x H)
Installation	DIN-Rail / Screw

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 95% RH, Non-condensing

Download

Data Sheet

Documents

Ordering information

GRP-540M-4GE CR

Ethernet/Serial/CAN to 4G Gateway. (RoHS)
