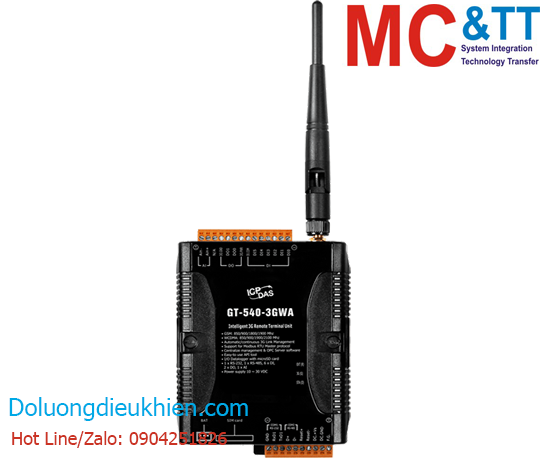

Miễn phí vận chuyển với đơn hàng từ 10.000.000đRTU Modem WCDMA (3G) 1 kênh AI + 6 kênh DI + 2 kênh DO+ RS-485 Modbus ICP DAS GT-540-3GWA CR
Tính năng
Giới thiệu
GT-540-3GWA is an intelligent Active 3G Remote Terminal Unit. Within the high performance 32 bit CPU, GT-540-3GWA is suit for the hard industrial environment. It features 3G(WCDMA) module, 6 digital inputs, 2 digital outputs, 1 analog input, 1 RS-232, 1 RS-485 and SD interface. It can be used in M2M application fields to transfer the local I/O or Modbus device's data via GPRS by the defined period or DI/AI triggers. The local I/O data can also be stored in the SD card to become a remote data logger. For another communication path, GT-540-3GWA offers the e-mail mode to transfer the data by e-mail via 3G for users to choose. The simple I/O linkage function of GT-540-3GWA can reach the real time control in local field. It also supports Li-ion battery as another power source when the main power is failed temporarily. Therefore, GT-540-3GWA is an ideal solution for environmental monitoring and remote device management for M2M applications. Meanwhile, it is supplied with easy-to-use API and OPC server Software that streamline application development process, freeing system integrators from dealing with complex communication protocols of 3G and the Internet.
Thông số kỹ thuật
| Software | |
|---|---|
| Service | RTU |
| CPU Module | |
|---|---|
| CPU | 32 bit CPU |
| Flash | 512 Kbytes |
| SRAM | 64 Kbytes |
| Storage Expansion | 4GB max. |
| Real Time Clock | Gives time(sec, min, hour) & date, leap year compensation from 1980 to 2079 |
| Watchdog Timer | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x EXT 1 x 3G 1 x STA |
| 2G System | |
|---|---|
| Data Transmission Rate | GPRS Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max. 42.8kbps |
| Frequency Band | 850/900/1800/1900 MHz |
| Coding Schemes | CS 1, CS 2,CS 3,CS 4 |
| GPRS Multi-slot | GPRS class 12; GPRS station class B |
| Power Class | Class 4 (2 W @ 850/900 MHz) Class 1 (1 W @ 1800/1900 MHz) |
| 3G System | |
|---|---|
| Data Transmission Rate | HSPA Downlink transfer: Max. 7.2 Mbps; Uplink transfer: Max 5.76 Mbps HSDPA Max. 7.2 Mb/s WCDMA Max. 384 kb/s Download/Upload link |
| Frequency Band | WCDMA 850/900/1900/2100 MHz |
| Power Class | Class 3 (250mW @ WCDMA/HSPA) |
| Analog Input | |
|---|---|
| Channels | 1 |
| Type | Current |
| Range | 0 ~ 20 mA |
| Resolution | 12 bit |
| Isolation | 3750Vrms |
| Digital Input | |
|---|---|
| Channels | 6 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source, Isolated channel with common power or ground |
| ON Voltage Level | +3.5 ~ 30 VDC |
| OFF Voltage Level | +1V max. |
| Response Speed | 6 (5~40Hz), Min. Pulse Width : 25ms |
| Isolation | 3750Vrms |
| Digital Output | |
|---|---|
| Channels | 2 |
| Type | Open-Collector (NPN) (100mA@30VDC) |
| Load Voltage | +30 V max. |
| Load Current | 100 mA max. |
| Isolation | 3750Vrms |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 (Configuration) 1 x RS-485 (Modbus device) |
| Power | |
|---|---|
| Consumption | Idle: 65 mA @ 24 VDC; Data Link: 170 mA @ 24 VDC; Peak: 450 mA @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 91 x 132 x 52 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ℃ ~ +75 ℃ |
| Storage Temperature | -40 ℃ ~ +80 ℃ |
| Humidity | 5~95% RH, non-condensing |
Download
Thông tin mua hàng
| GT-540-3GWA CR | 3G Remote Terminal Unit (RoHS) (Asia Only) |
