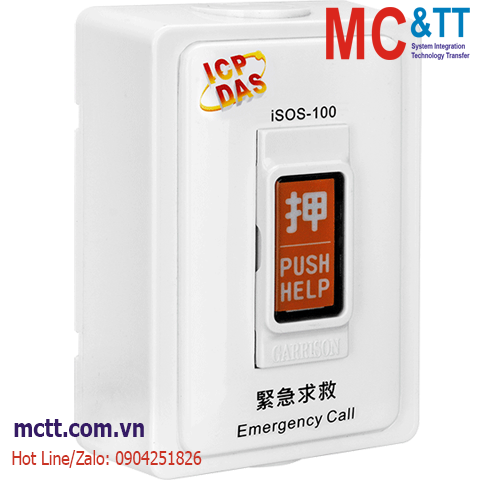

Module nút bấm cảnh báo khẩn cấp không dây ICP DAS iSOS-100 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

iSOS indoor emergency call button module

THÔNG TIN SẢN PHẨM

Feature

Provide emergency message for help report function
Powered by built-in disposable lithium batteries
Support 433MHz Radio Frequency
Selectable 16 Radio Frequency Channels
Active online report
Provide wall-mounting Installation

Introduction

iSOS-100 is a wireless emergency call button product, by means of sub-1G RF communication interface, it can approach the real wireless deployment. It provides emergency help return function, improve personal safety protection. This system is very suitable for public area construction. For example, public toilet, hospital, nursing homes, open campus, large parking lots and etc. iSOS-100 installs a CR-123A battery delivers reliable electricity and reduces the cost of wiring. Realize emergency information transmission, meet low energy consumption, wireless communication and emergency monitoring, etc., greatly reduce the time and human resources required for system construction and maintenance.

Application

Wireless Emergency Alert System.

Specifications

RF
Channels	0 ~ 15 (Selectable by DIP Switch)
Group ID	0 ~ 3 (Selectable by DIP Switch)
Radio Frequency	433.1000 ~ 434.6000 MHz
Transmission Power	9±1dBm (PA Off) / 18±1dBm (PA On)
Transmission Cycle	1 / 10 / 30 / 60 Secs. 3 / 5 / 10 / 30 Mins. (Selectable by DIP Switch) 1 Sec.(Emergency Triggered Only)
Transmission Distance (LoS)	50 m
Node ID	1 ~ 31 configured by DIP switch

Antenna
Type	0 dBi Spring antenna (Omni-directional)

Power
Consumption	0.596mAh@1 Day
Battery	1 x CR123A (3.0 VDC) Battery Life: 2 years (Working Duty: 1 Min.)

Mechanical
Dimensions (mm)	92 x 136 x 52(W x L x H)
Installation	Wall-mount

Environment
Operating Temperature	-25℃ ~ +60℃
Storage Temperature	-30 ~ +80°C (No battery included) -20 ~ +45°C (Battery included)
Humidity	20 ~ 65% RH(Non-condensing)

Download

Datasheet

Documents

Ordering Information

iSOS-100 CR

iWSN indoor emergency call button module(RoHS) (Asia Only)
